| Category | Detail |
|---|---|
| Product SKUs | A+ Server AS-8125GS-TNHR |
| Motherboard | Super H13DSG-O-CPU-D |
| Processor | |
| CPU | Dual Socket SP5 |
| Supported Processors | AMD EPYC™ 9004 Series Processors |
| Core Count | Up to 128C/256T |
| Note | Supports up to 400W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | Up to 8 onboard GPU(s) |

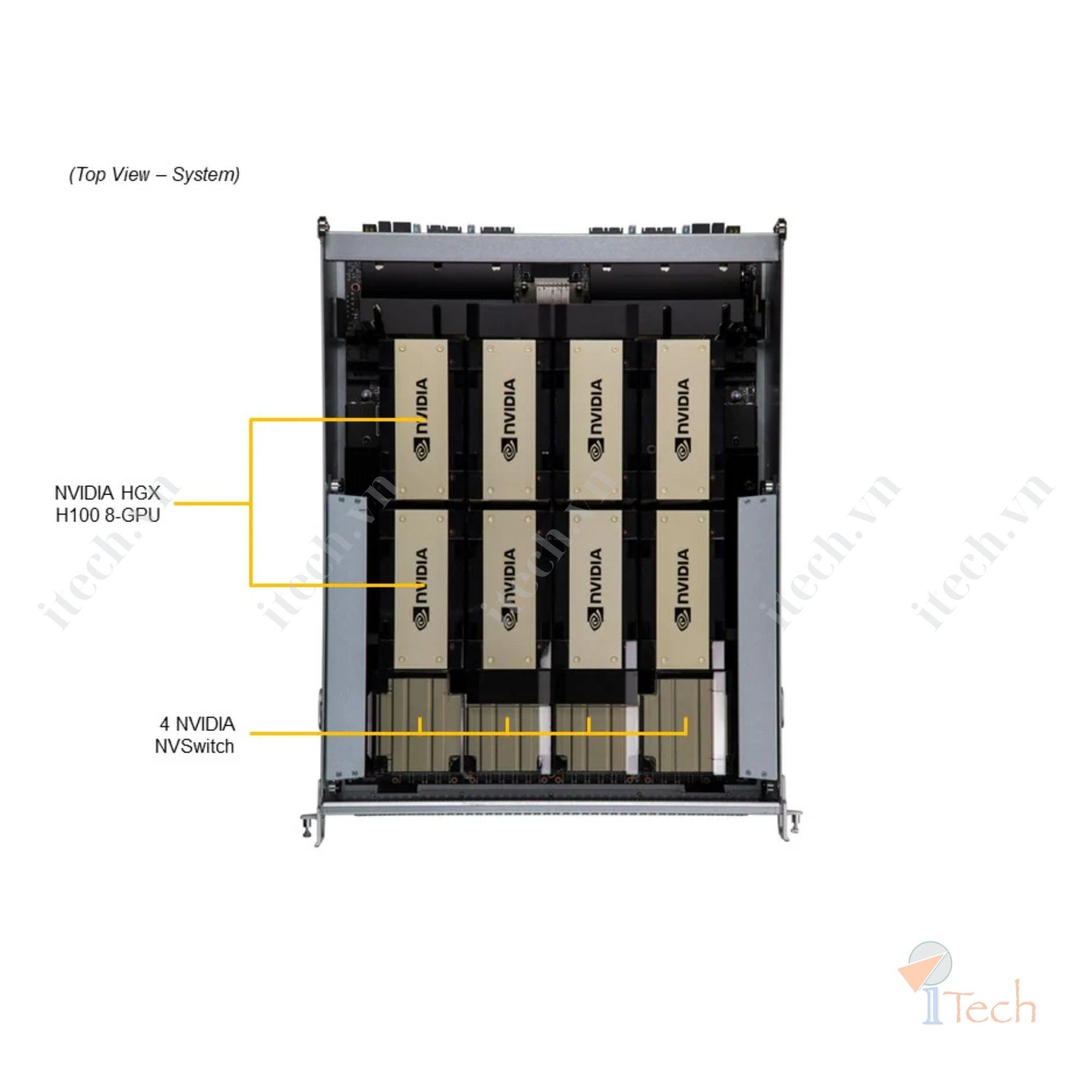

| Supported GPU | NVIDIA SXM: HGX H100 8-GPU (80GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink® with NVSwitch™ |
| System Memory | |
| Memory Slot Count | 24 DIMM slots |
| Max Memory (1DPC) | Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | AMD SP5 |
| Network Connectivity | View AOC Options |
| Input / Output | |
| Video | 1 VGA port(s) |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), |
| Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), | |
| Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! | |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, |
| Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, | |
| System Lockdown | |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory, 7 +1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring, Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Chassis | |

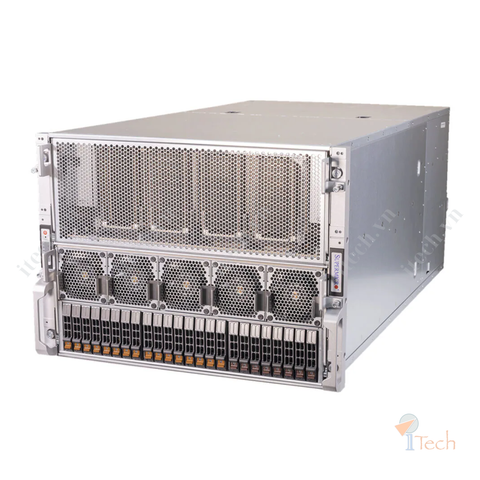

| Form Factor | 8U Rackmount |
| Model | CSE-GP801TS |
| Dimensions | Height: 14" (355.6 mm), Width: 17.2" (437 mm), Depth: 33.2" (843.28 mm) |
| Package Dimensions | 29.5" (H) x 27.5" (W) x 51.2" (D) |
| Weight | Gross Weight: 225 lbs (102.1 kg), Net Weight: 166 lbs (75.3 kg) |
| Available Color | Black front & silver body |
| Front Panel | |
| LED | Hard drive activity LED, Network activity LEDs, Power status LED, System Overheat & Power Fail LED |
| Buttons | Power On/Off button, System Reset button |
| Expansion Slots | |
| PCIe Configuration | 8 PCIe 5.0 x16 LP slot(s), 2 PCIe 5.0 x16 FHFL slot(s) |
| Drive Bays / Storage | |
| Drive Bays Configuration | 2 front hot-swap 2.5" SATA drive bay(s), 4 front hot-swap 2.5" NVMe drive bay(s), |
| 12 front hot-swap 2.5" NVMe drive bay(s) | |
| M.2 | 1 M.2 NVMe slot(s) (M-key) |
| System Cooling | 10 heavy duty fans with optimal fan speed control |
| Power Supply | 6x 3000W Redundant Titanium Level (96%) power supplies |
| Dimension (WxHxL) | 106.5 x 82.1 x 245.5 mm |
| AC Input | 3000W: 0240Vdc / 50-60Hz (for CQC only), 2880W: 200-207Vac / 50-60Hz, 3000W: 207-240Vac / 50-60Hz |
| +12V | Max: 91.66A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 3A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment | |
| Operating Temperature | 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity | 8% to 90% (non-condensing) |
| Non-operating Relative Humidity | 5% to 95% ( |
