| Thông Số | Chi Tiết |
|---|---|
| Processor (CPU) | Dual Socket SP5 với AMD EPYC™ 9004 Series Processors |
| Core Count | Up to 128 cores / 256 threads |
| TDP Support | Up to 400W per CPU, air cooled |
| GPU Support | Up to 8 double-width GPUs: H100 NVL, H100, RTX 4000 SFF Ada Gen, L40, RTX A5500, RTX A4000, RTX 6000, L40S, A40, A30, A100; Instinct MI210 (AMD) |
| CPU-GPU Interconnect | Direct Attached |
| GPU-GPU Interconnect | NVIDIA NVLink Bridge (optional), AMD Infinity Fabric Link (optional) |
| System Memory | 24 DIMM slots, max up to 6TB ECC DDR5 RDIMM/LRDIMM, 4800MT/s |
| Memory Voltage | 1.1V |

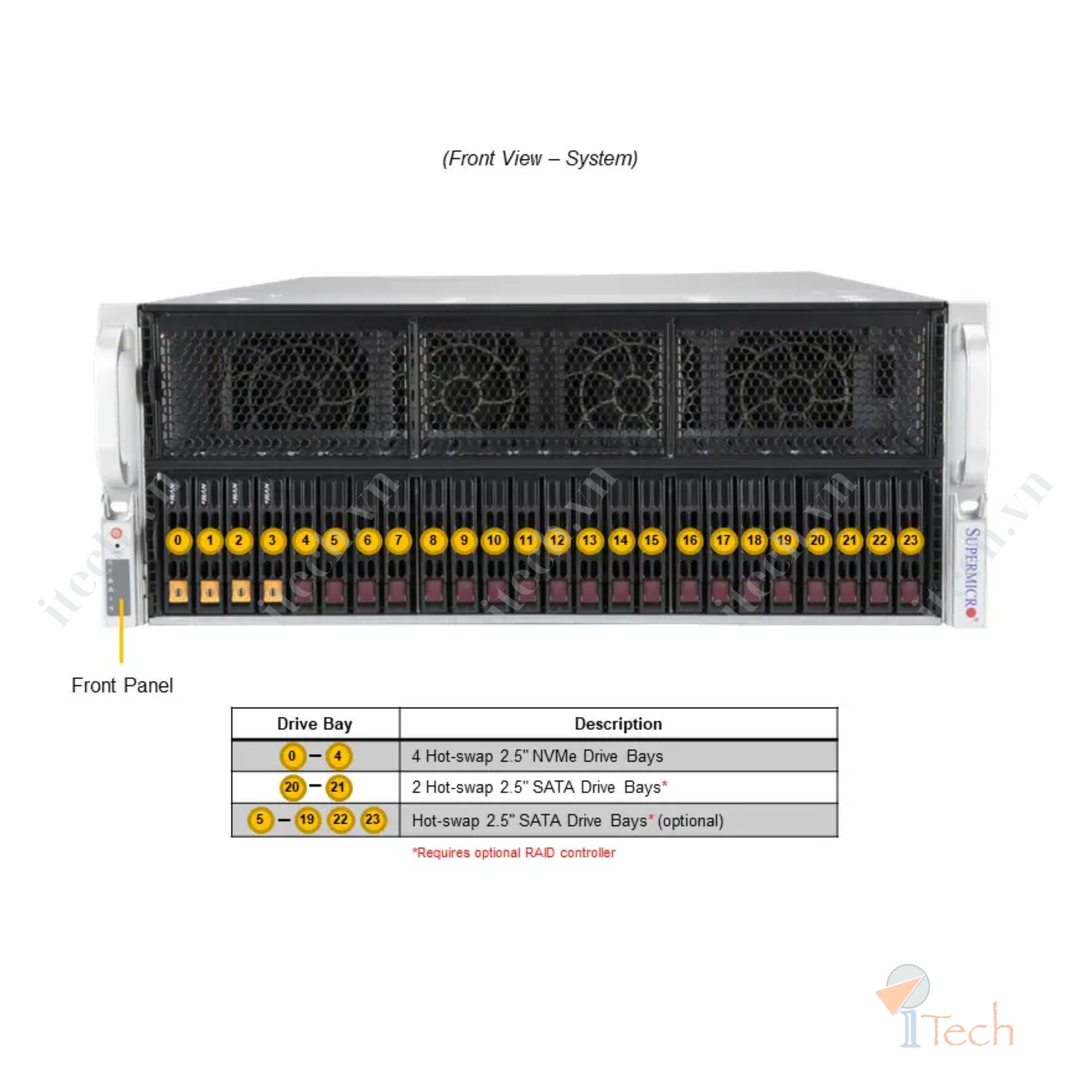

| Drive Bays Configuration | 2 front hot-swap 2.5" SATA drive bays, 4 front hot-swap 2.5" NVMe drive bays |
| M.2 PCIe NVMe Slot | 1 M.2 PCIe 3.0 x4 NVMe slot (M-key) |
| Networking | 1 RJ45 1 GbE IPMI port, 2 RJ45 10 GBASE-T LAN ports |
| I/O Ports | 2 USB rear ports, 1 VGA port, 1 COM port |
| Power Supply Configuration | 4 redundant 2000W Titanium Level power supplies (96% efficiency) |
| Environmental Specifications | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Operating Relative Humidity: 8% to 90% (non-condensing) |
| System Cooling | 8 heavy-duty fans with optimal fan speed control |
| System BIOS | AMI 32MB SPI Flash EEPROM |
| Management Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), and others. |
| Security Features | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT), cryptographically signed firmware, secure boot, secure firmware updates, supply chain security, and runtime BMC protections. |
| Expansion Slots | 9 PCIe 5.0 x16 FHFL slots |
| Chassis Dimensions | Height: 7" (178 mm), Width: 17.2" (437 mm), Depth: 29" (737 mm) |
| Weight | Gross Weight: 100 lbs (45.3 kg), Net Weight: 65.5 lbs (29.7 kg) |
| Power Supply Type | 4x 2000W Redundant Titanium Level (96%) power supplies |
| Power Supply Input | 1000W: 100-127Vac / 50-60Hz, 1800W: 200-220Vac / 50-60Hz, 1980W: 220-230Vac / 50-60Hz, 2000W: 220-240Vac / 50-60Hz (for UL only), 2000W: 230-240Vac / 50-60Hz |
| Power Supply Output | +12V Max: 83A / Min: 0A (100Vac-127Vac), Max: 150A / Min: 0A (200Vac-220Vac), Max: 165A / Min: 0A (220Vac-230Vac), Max: 166A / Min: 0A (230Vac-240Vac) |
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F), Non-operating Temperature: -40°C to 60°C (-40°F to 140°F), Operating Relative Humidity: 8% to 90% (non-condensing), Non-operating Relative Humidity: 5% to 95% (non-condensing) |
