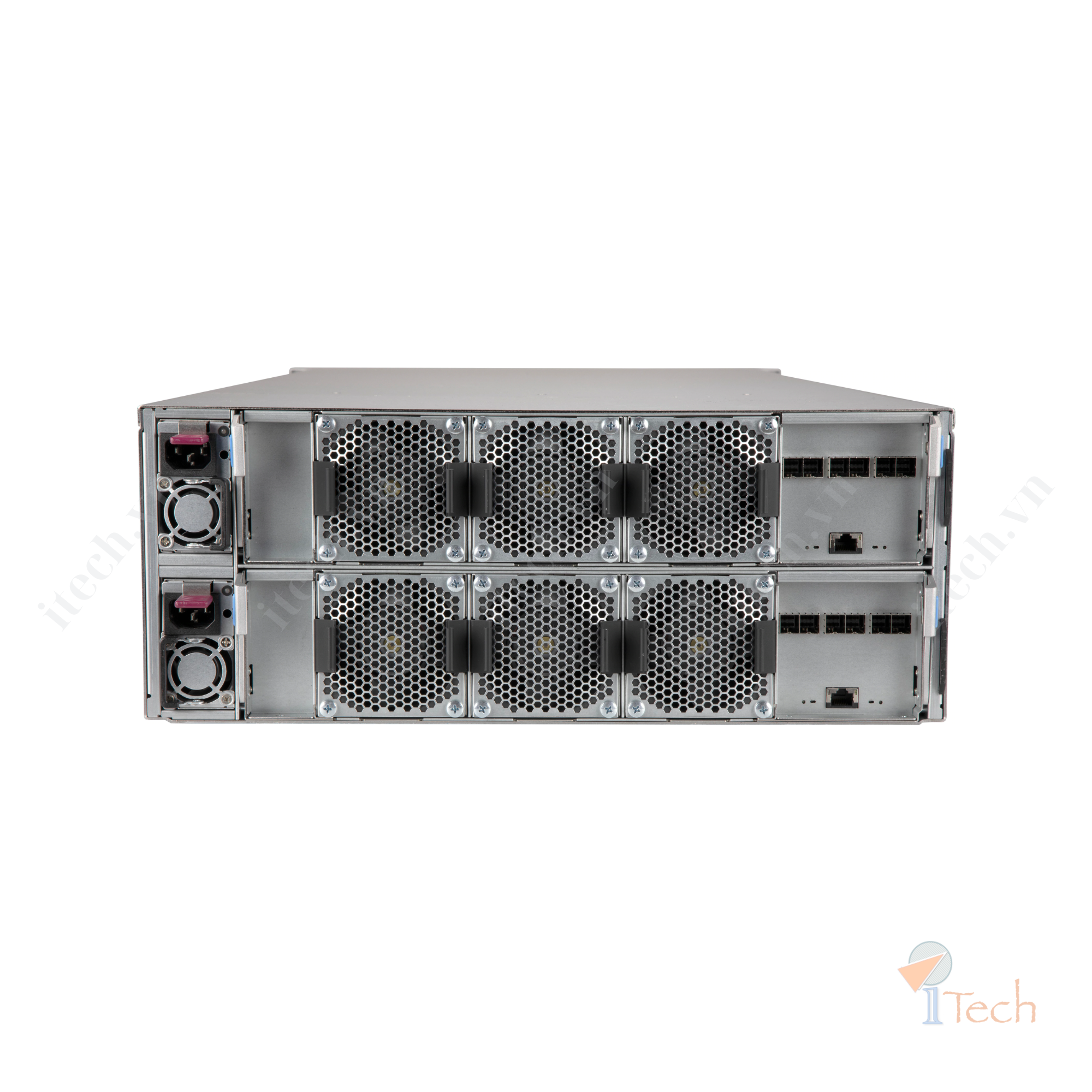

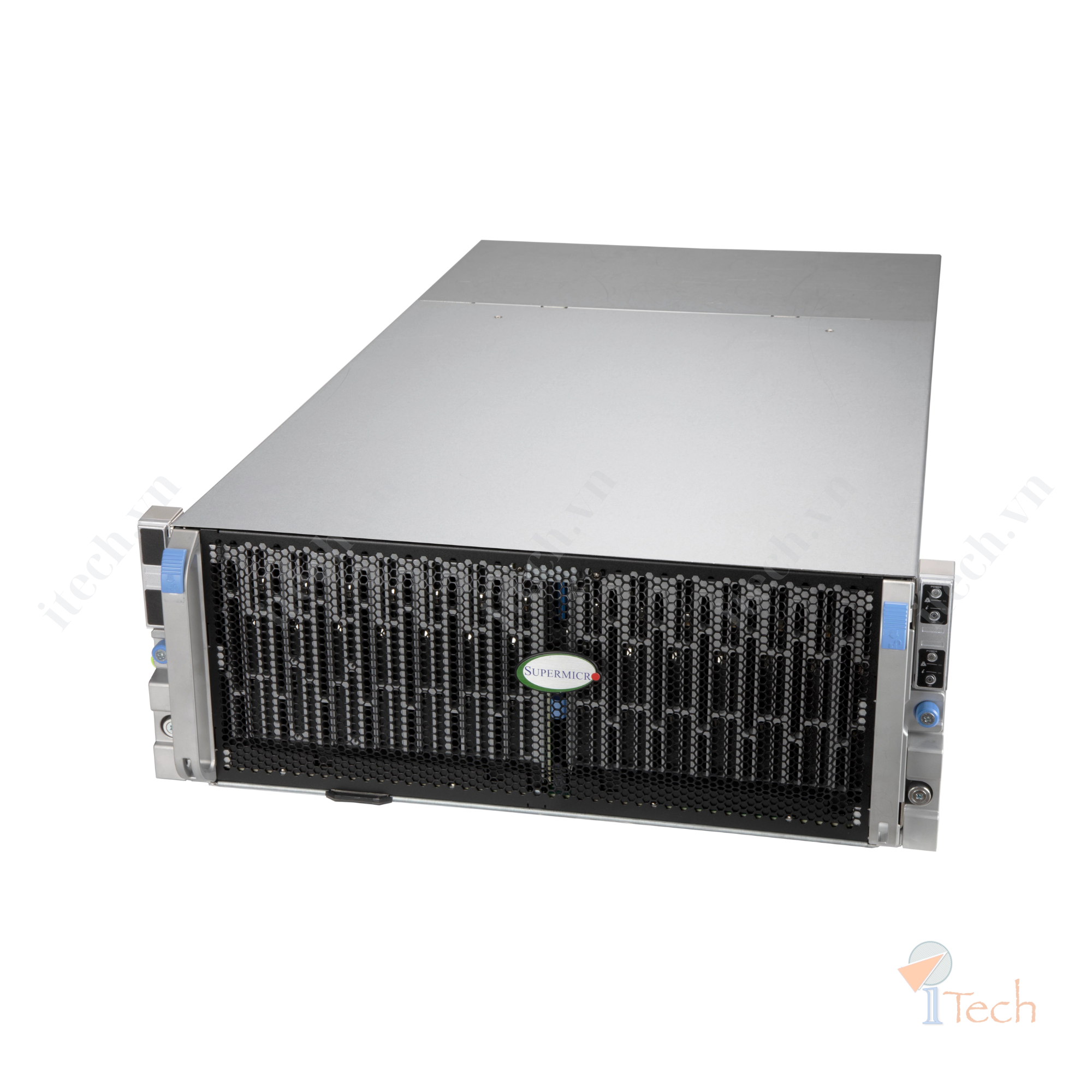

The SC947SE2C-R1K66JBOD is a 4U chassis designed by Supermicro specifically for storage applications. It supports 60 hot-swappable SAS3 3.5-inch drives:
| Specification | Value |
|---|---|
| Product SKU | SuperChassis 947SE2C-R1K66JBOD |
| Form Factor | 4U |
| Dimensions | Height: 6.96" (177 mm), Width: 17.6" (447 mm), Depth: 32" (813 mm) |
| Gross Weight | 173 lbs (78.47 kg) |
| Net Weight | 110 lbs (49.9 kg) |
| Palletized Packing (W x H x L) | 35.82" (805 mm) x 29.92" (755 mm) x 53.15" (1135 mm) |
| Available Color | Black |
| Drive Bays | 60x 3.5"/2.5" hot-swap SAS drive bay with SES3 |
| Qualified SAS Controllers | AOC-SAS3-9500-8E, AOC-SAS3-9500-16E, AOC-SAS3-9580-8I8E |
| Systems Cooling | 6x 8cm hot-swap redundant PWM cooling fans |
| System Monitoring | IPMI |
| Operating Environment | Operating Temperature: 5°C - 35°C (41°F - 95°F) Non-Operating Temperature: -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity: 8% - 90% (non-condensing) Non-Operating Relative Humidity: 5% - 95% (non-condensing) |
| Power Supply | 1600W redundant power supply, Platinum level with PMBus & I2C Power Efficiency: 94% Total Output Power: 1000W with Input 100 - 127Vac, 1600W with Input 200 - 240Vac AC Input Frequency: 50-60Hz Dimensions: 265 x 73.5 x 40 mm +12V: Max: 82A / Min: 0.1A (100Vac - 120Vac), Max: 132A / Min: 0.1A (200Vac - 240Vac) +12Vsb: Max: 2A / Min: 0.2A |
| Power Supply Certifications | BSMI, CCC, CE/EMC, FCC class A, TUV/CB, UL/CUL |
