| Thành phần | Chi tiết |
|---|---|

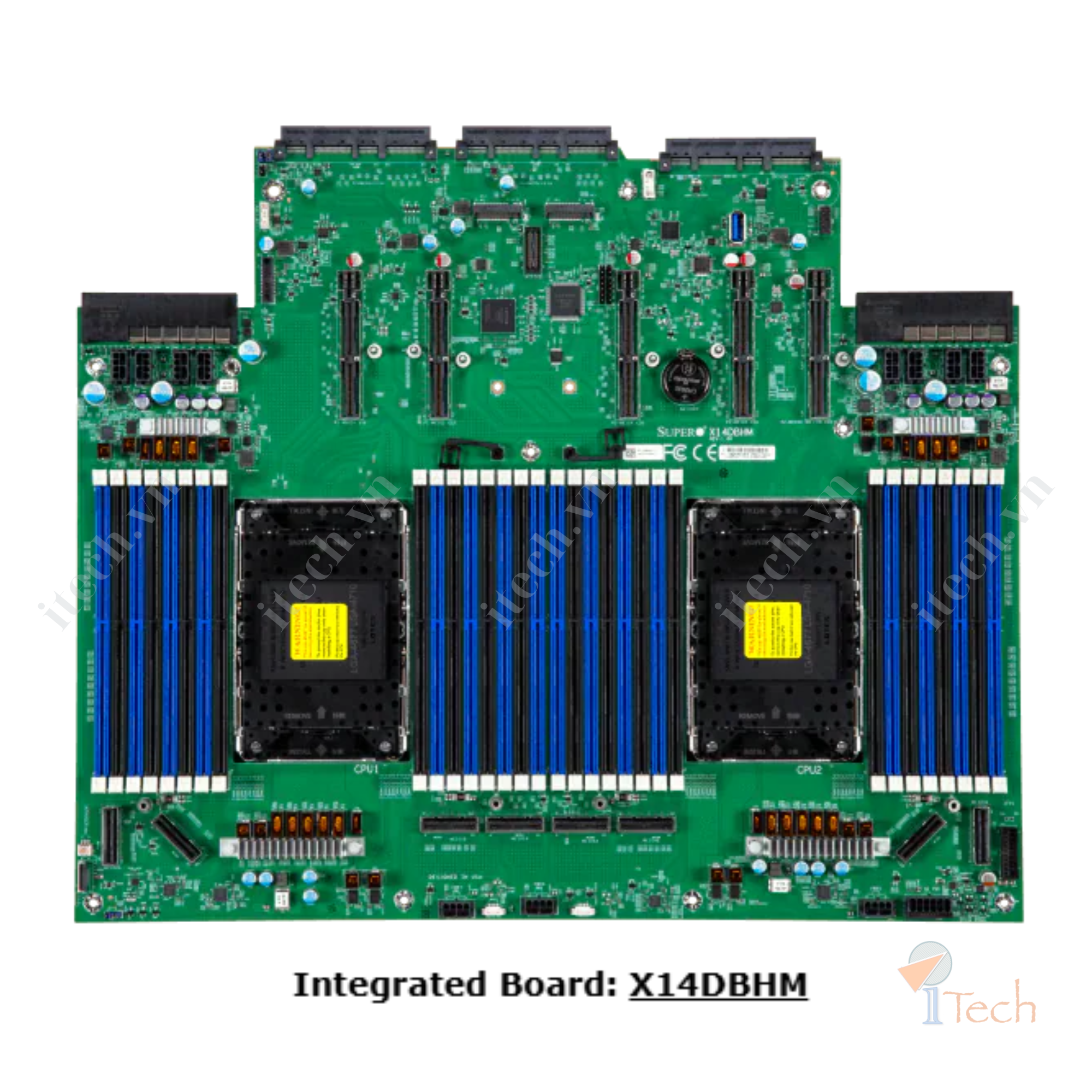

| Motherboard | Super X14DBHM |
| Processor | |
| - CPU | Dual Socket E2 (LGA-4710) |
| - Series | Intel® Xeon® 6 6700 series processors with E-cores |
| - Core Count | Up to 144C/144T |
| - TDP Support | Supports up to 350W TDP CPUs (Air Cooled) |
| GPU | |
| - Max GPU Count | Up to 3 double-width or 6 single-width GPU(s) |
| System Memory | |

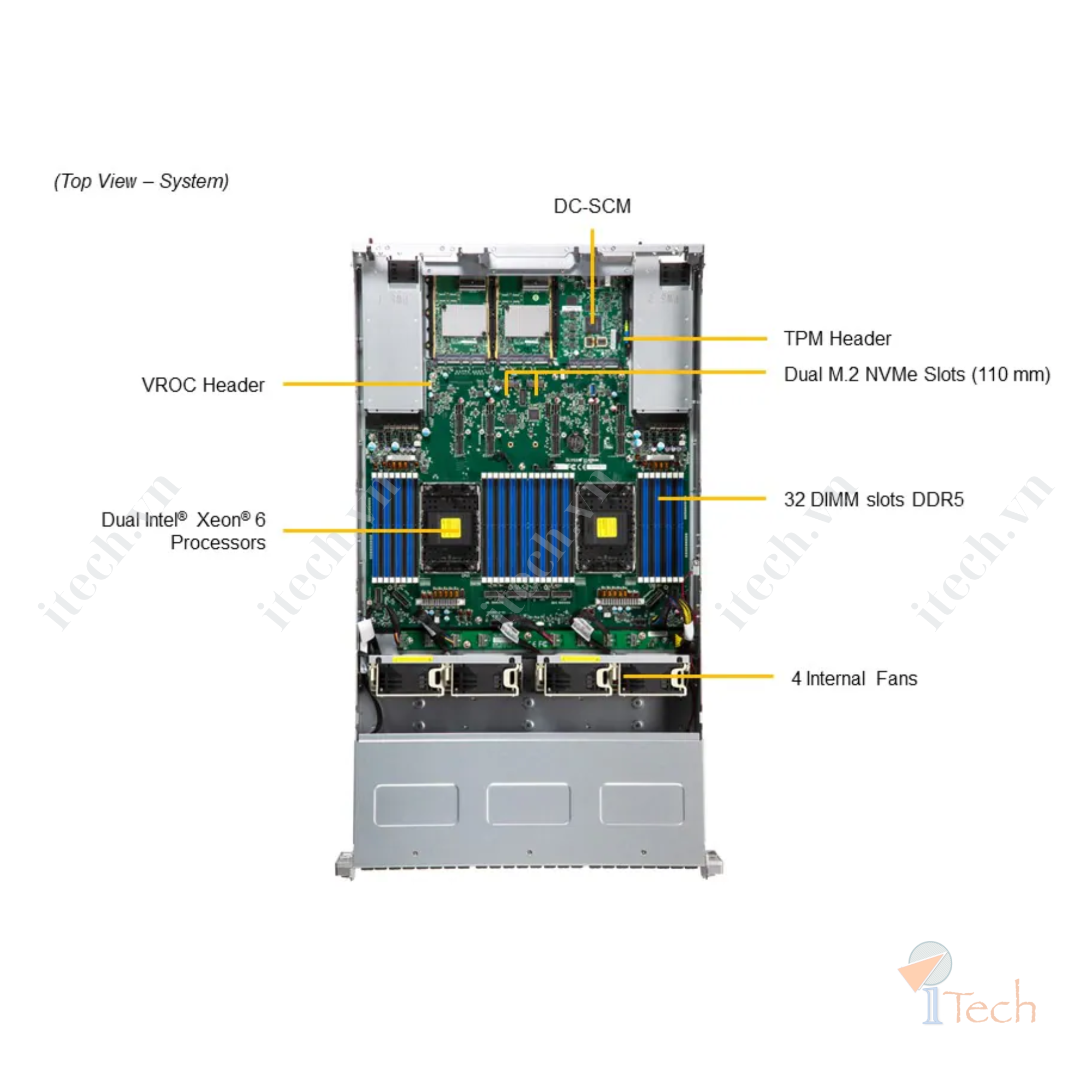

| - Slot Count | 32 DIMM slots |
| - Max Memory | Up to 2TB 6400MT/s ECC DDR5 RDIMM (2DPC) |
| On-Board Devices | |
| - NVMe | RAID 0/1/5/10 support (VROC HW key required) |
| - Chipset | System on Chip |
| - Network Connectivity | Via Slim-AIOM |
| Input / Output | |
| - LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| - USB | 2 USB 3.0 Type-A ports (Rear) |
| - Video | 1 VGA port (Rear) |
| - TPM | 1 TPM header |
| System BIOS | AMI 32MB SPI FLASH ROM |
| Management | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) |
| Power Configurations | ACPI/APM Power Management |
| Security | |
| - Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| - Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| Chassis | |

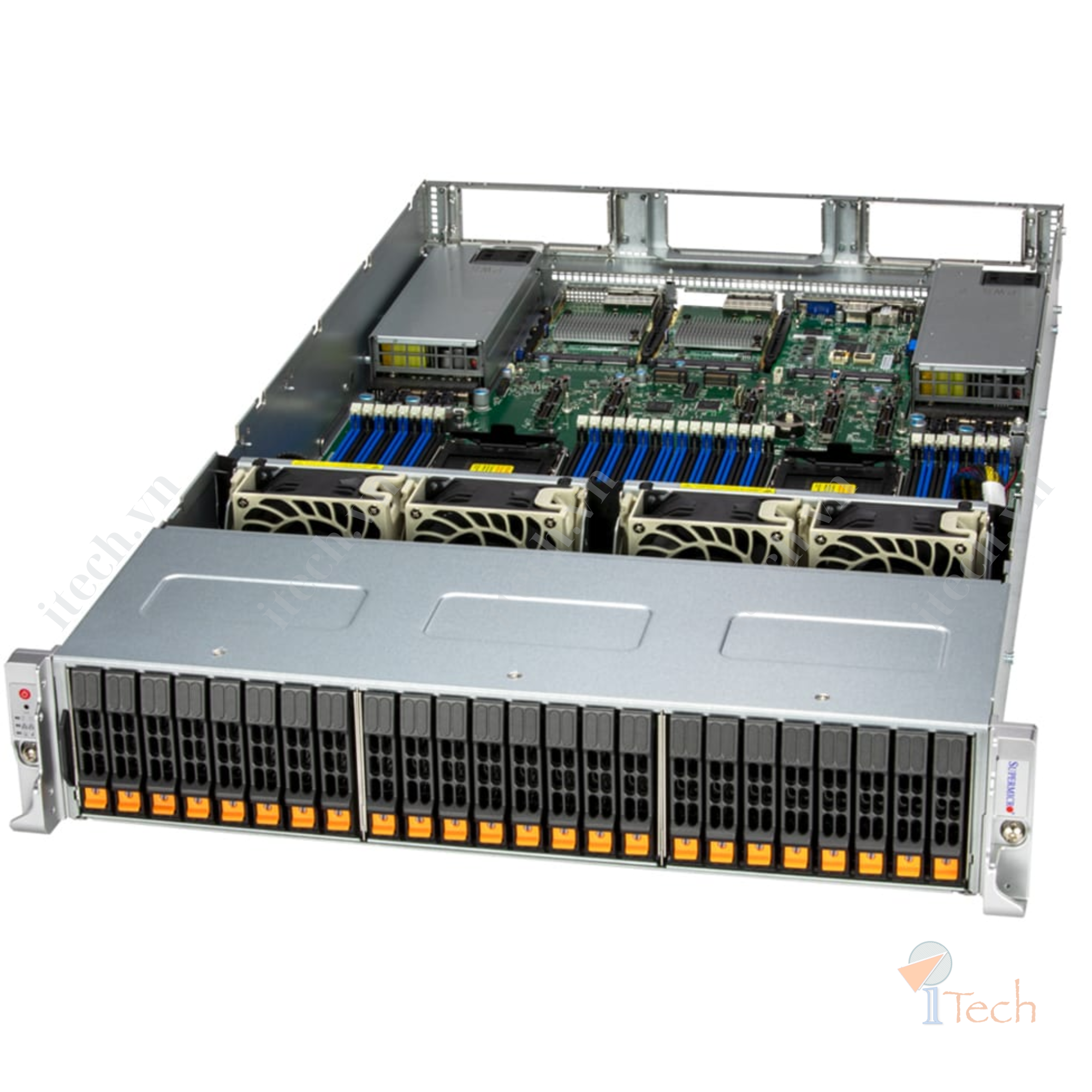

| - Form Factor | 2U Rackmount |
| - Model | CSE-DC201TS-R000NP |
| - Dimensions | Height: 3.47" (88 mm), Width: 17.25" (438 mm), Depth: 30.7" (780 mm) |
| - Package | 9.4" (H) x 23.5" (W) x 43.2" (D) |
| - Weight | Gross Weight: 83.78 lbs (38 kg), Net Weight: 61.73 lbs (28 kg) |
| - Color | Silver |
| Front Panel | |
| - LED | HDD activity, LAN1 activity, LAN2 activity, Power Fail, Power status, System information (overheat/UID) |
| - Buttons | Power On/Off, UID button |
| Expansion Slots | |

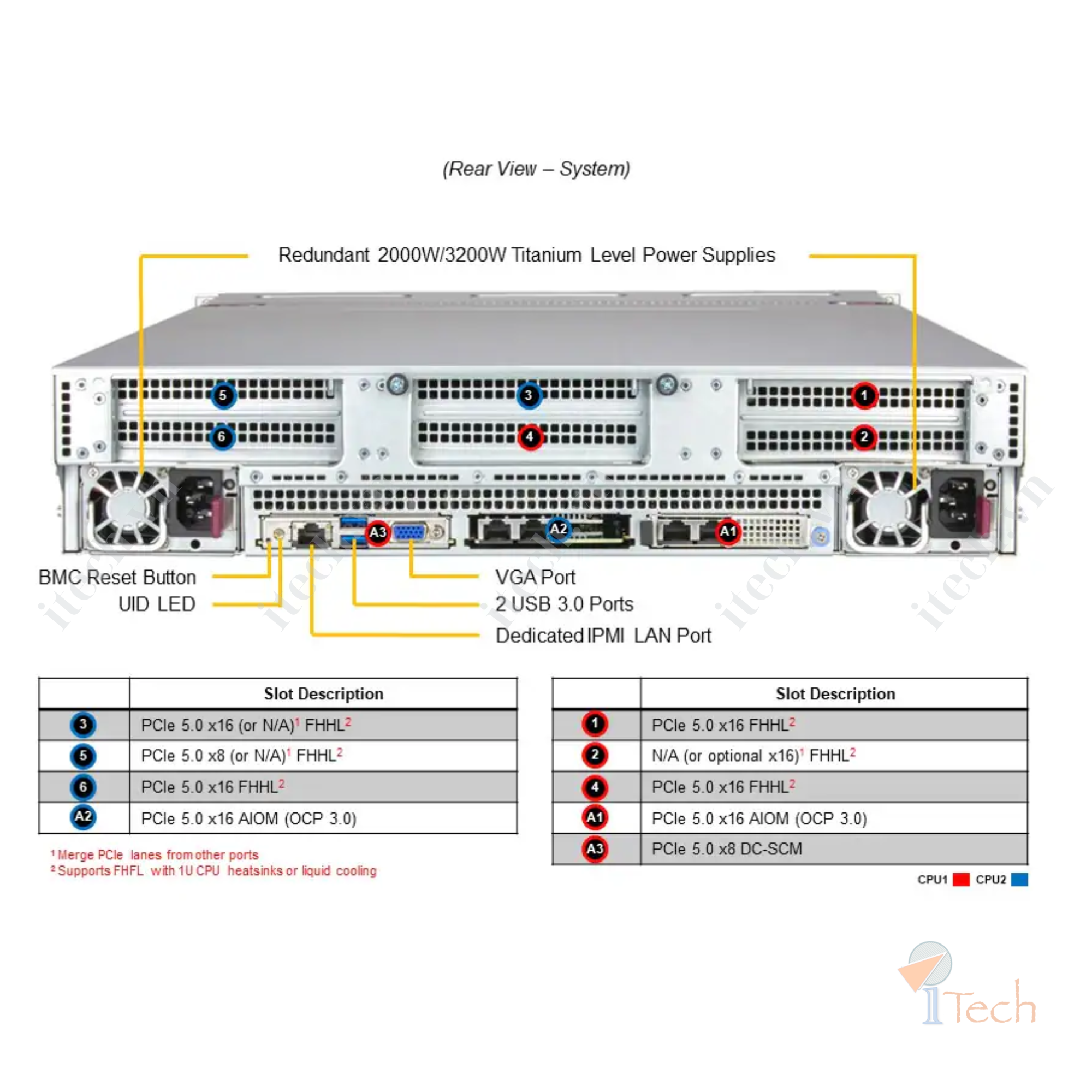

| - PCI-Express (PCIe) | 4 PCIe 5.0 x16 (in x16) FHFL slots, 1 PCIe 5.0 x8 (in x16) FHFL slot (Default); 2 PCIe 5.0 x16 (in x16) FHFL slots, 1 PCIe 5.0 x8 (in x16) FHFL slot (Option A) |
| - CXL Support | Up to 3 internal CXL 2.0 x16/x8 Type 2/Type 3 devices |
| Drive Bays / Storage | |
| - Drive Bays Configuration | 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays |
| - M.2 | 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default)/2280; VROC required for RAID) |
| System Cooling | |
| - Fans | 4x 8cm heavy duty fans with optimal fan speed control |
| - Air Shroud | 1 Air Shroud |
| Power Supply | |
| - Options | 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies |
| - Dimensions | 73.5 x 40 x 185 mm |
| - AC Input | 1000W: 100-127Vac / 50-60Hz, 1800W: 200-220Vac / 50-60Hz, 1980W: 220-230Vac / 50-60Hz, 2000W: 220-240Vac / 50-60Hz (for UL only), 2000W: 230-240Vac / 50-60Hz, 2000W: 230-240Vdc / 50-60Hz (for CQC only) |
| - Output | +12V Max: 83A / Min: 0A (100Vac-127Vac), Max: 150A / Min: 0A (200Vac-220Vac), Max: 165A / Min: 0A (220Vac-230Vac), Max: 166A / Min: 0A (230Vac-240Vac); 12V SB Max: 3.5A / Min: 0A |
| Operating Environment | |
| - ROHS | RoHS Compliant |
| - Operating Temperature | 10°C ~ 35°C (50°F ~ 95°F) |
| - Non-operating Temperature | -30°C to 60°C (-30°F to 140°F) |
| - Operating Relative Humidity | 8% to 80% (Non-Condensing) |
| - Non-operating Relative Humidity | 8% to 90% (Non-Condensing) |
