| Thành phần | Chi tiết |
|---|---|

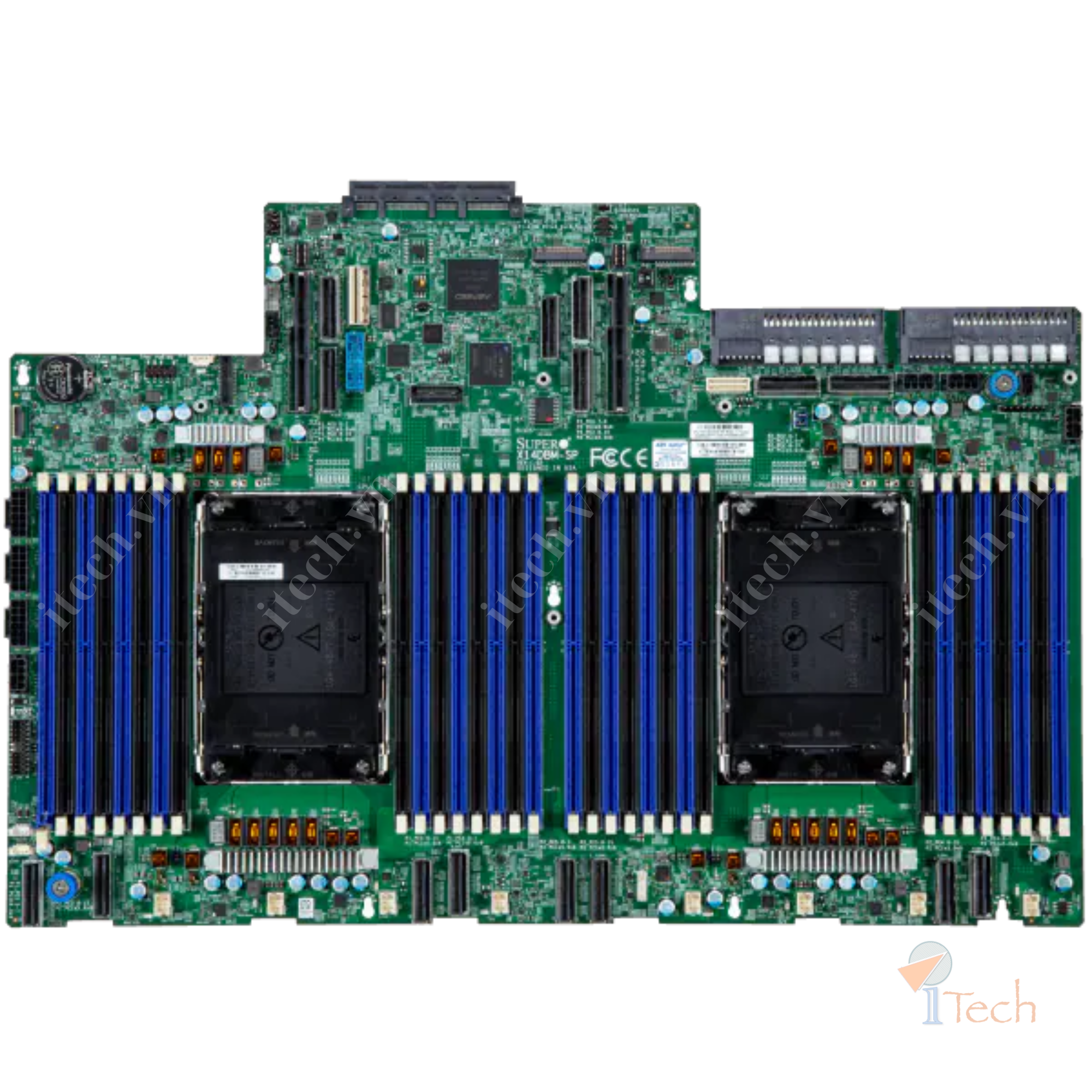

| Motherboard | Super X14DBM-SP |
| Processor | |
| - CPU | Dual Socket E2 (LGA-4710) |
| - Series | Intel® Xeon® 6 6700 series processors with E-cores |
| - Core Count | Up to 144C/144T; Up to 108MB Cache per CPU |
| - TDP Support | Supports up to 330W TDP CPUs (Air Cooled); Supports up to 330W TDP CPUs (Liquid Cooled) |
| GPU | |
| - Max GPU Count | Up to 1 double-width or 3 single-width GPU(s) |
| System Memory | |
| - Slot Count | 32 DIMM slots |
| - Max Memory (1DPC) | Up to 2TB 6400MT/s ECC DDR5 RDIMM |
| - Max Memory (2DPC) | Up to 2TB 5200MT/s ECC DDR5 RDIMM |
| On-Board Devices | |
| - NVMe | RAID 0/1/5/10 support (Intel® VROC RAID key required) |
| - Chipset | System on Chip |
| - Network Connectivity | Via AIOM |
| Input / Output | |
| - LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) |
| - USB | 2 USB 3.0 ports (rear), 1 USB 3.0 port (front) |
| - Video | 1 VGA port |
| System BIOS | AMI 64MB SPI Flash |
| Management | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security | |
| - Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| - Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring | |
| - CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| - FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| - Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Chassis | |

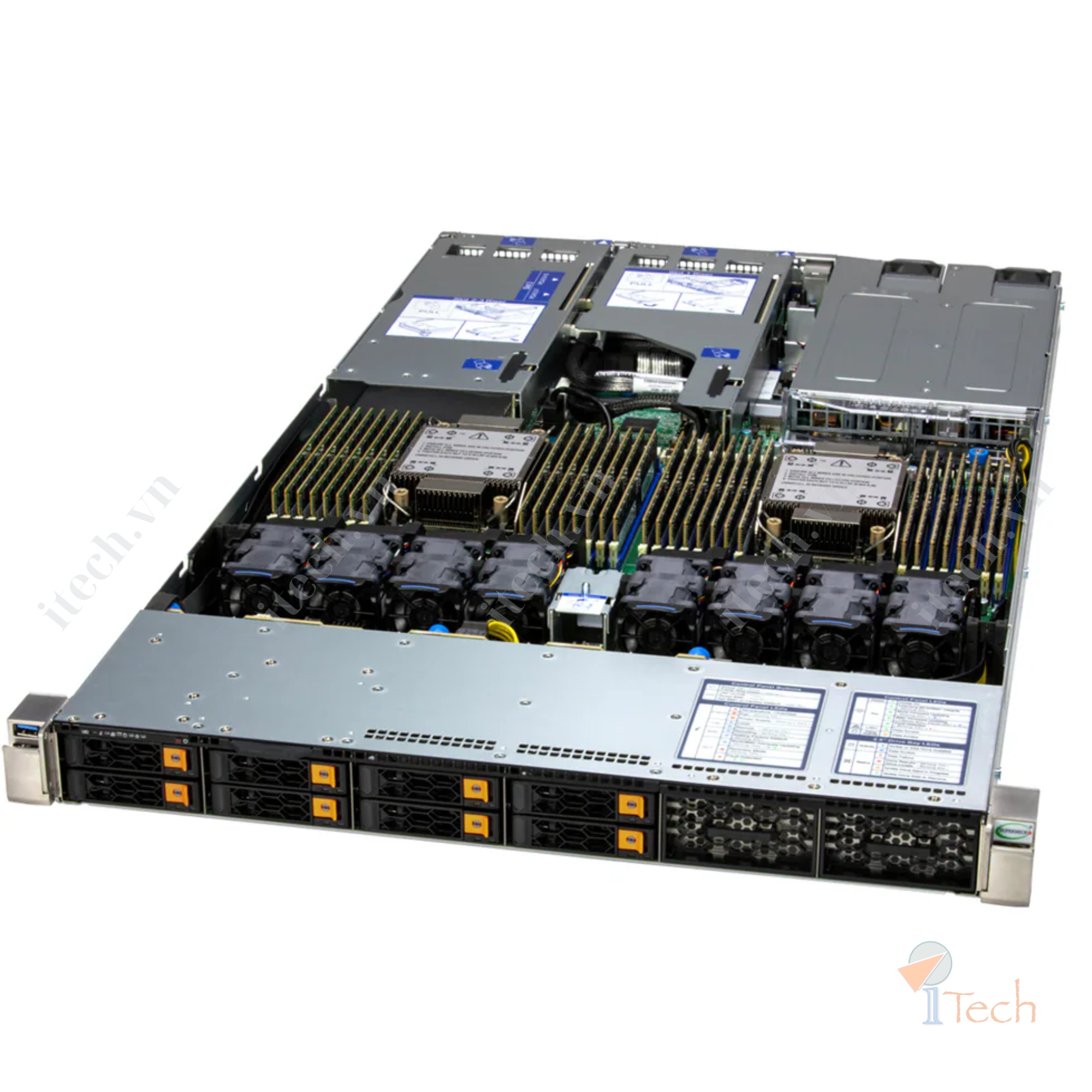

| - Form Factor | 1U Rackmount |
| - Model | CSE-HS119-R000NP2 |
| - Dimensions | Height: 1.71" (43.6 mm), Width: 17.3" (438.4 mm), Depth: 29.27" (743.38 mm) |
| - Package | 7.99" (H) x 23.82" (W) x 27.4" (D) |
| - Weight | Gross Weight: 41 lbs (18.6 kg), Net Weight: 18.7 lbs (8.5 kg) |
| - Color | Silver |

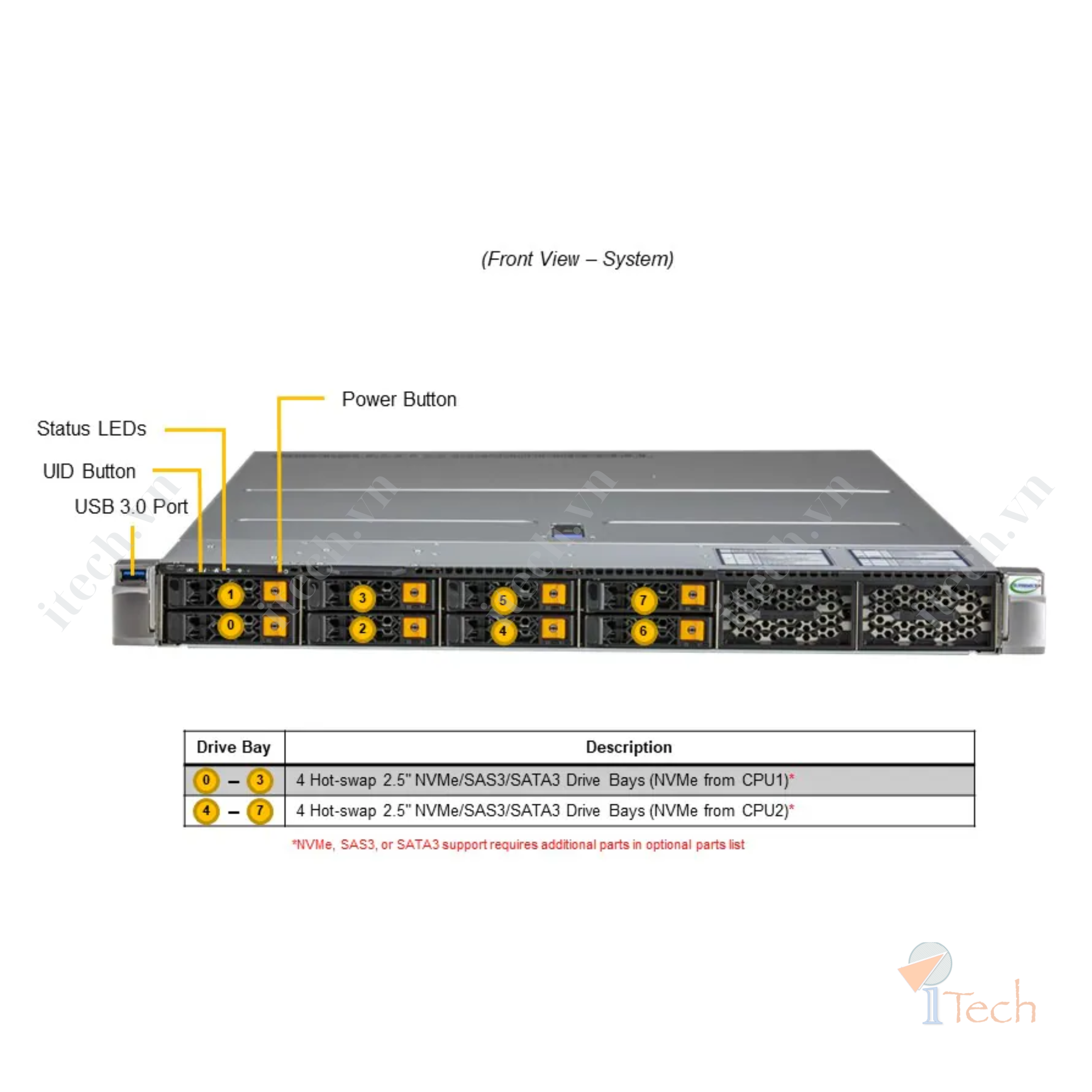

| Front Panel | |
| - LED | HDD activity, LAN1 activity, Power, System information |
| - Buttons | Power On/Off, UID button |
| Expansion Slots | |

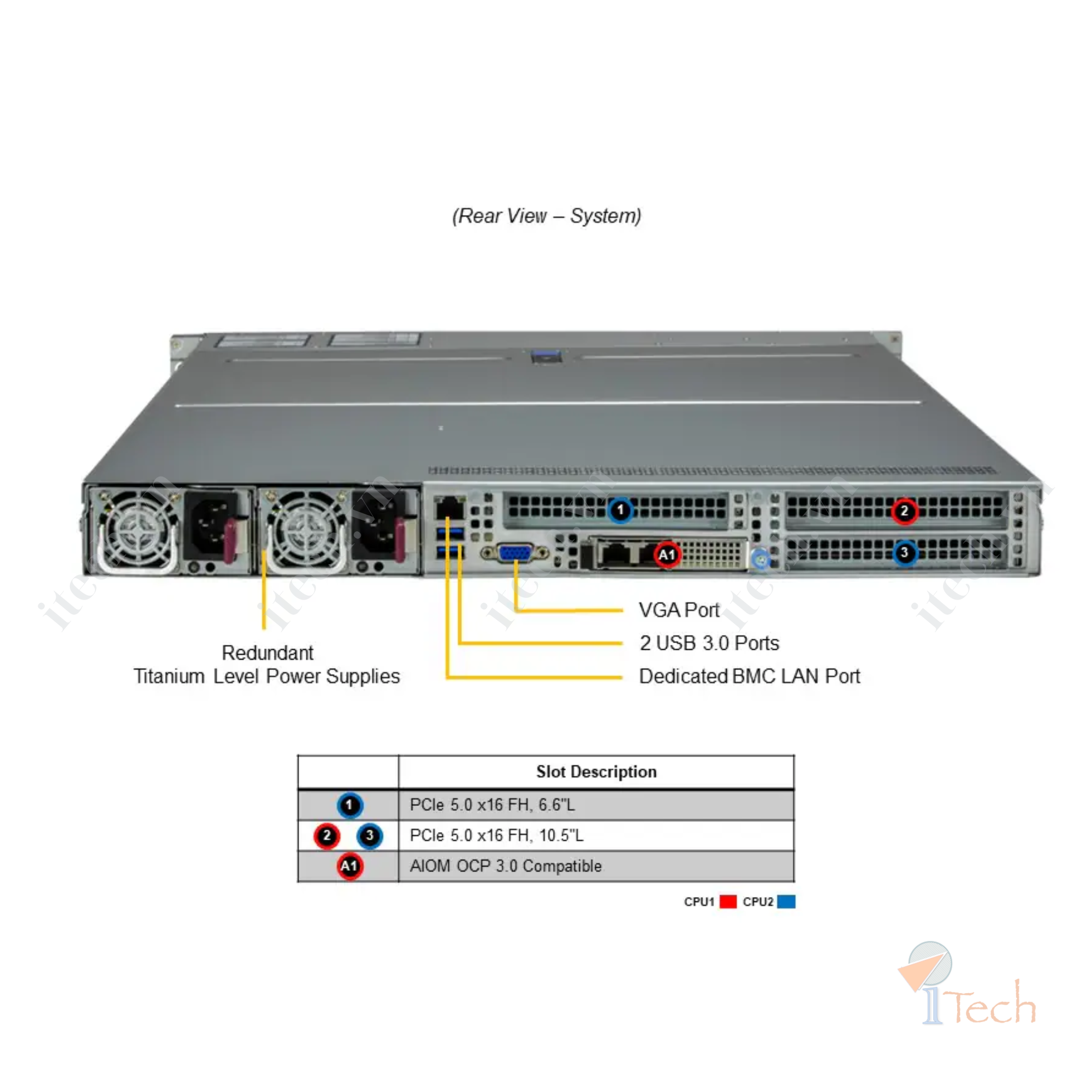

| - PCI-Express (PCIe) | 1 PCIe 5.0 x16 FHHL slot, 2 PCIe 5.0 x16 FH/10.5"L slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Drive Bays / Storage | |

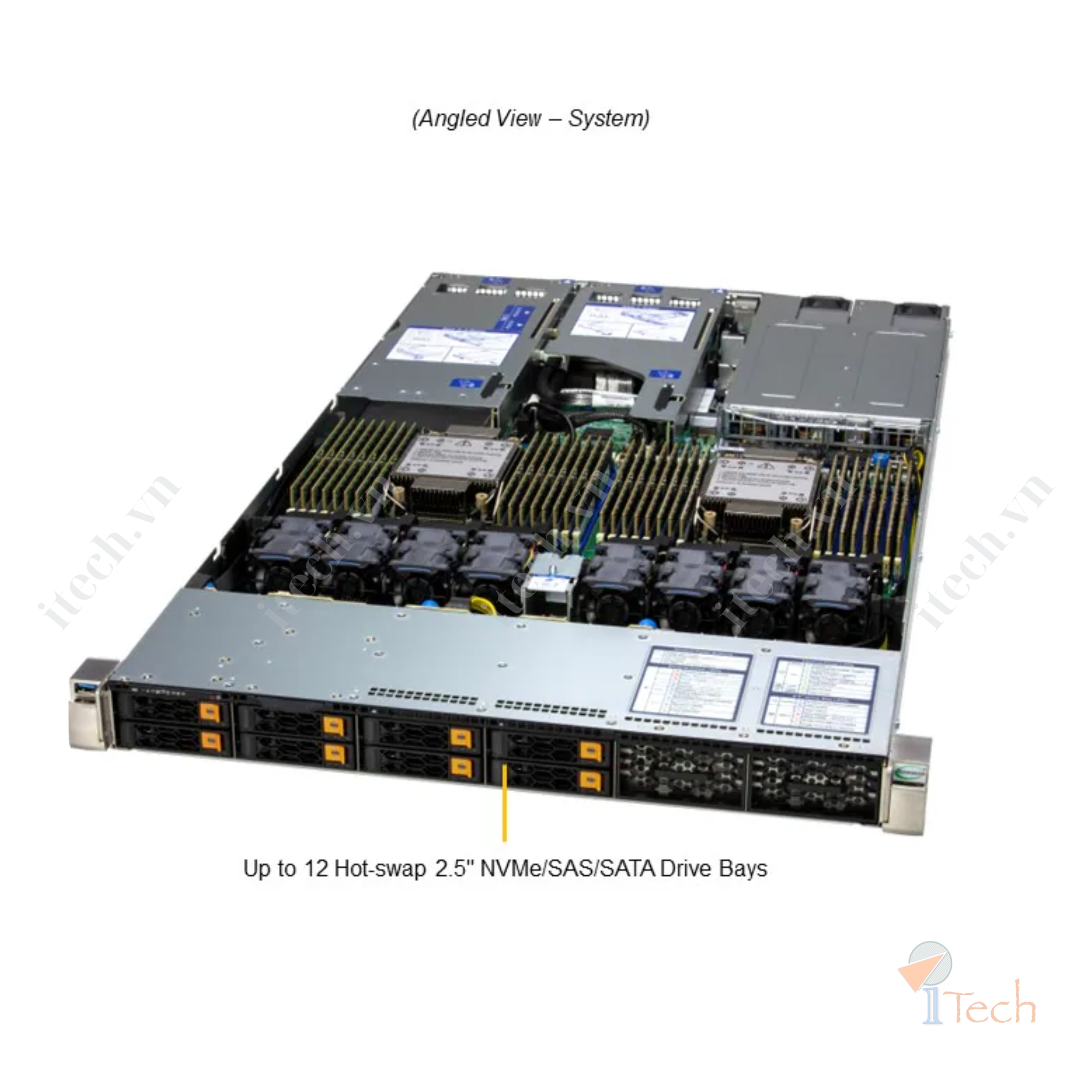

| - Drive Bays Configuration | Default: 8 front hot-swap 2.5" NVMe/SAS/SATA drive bays; Option A: 12 front hot-swap 2.5" NVMe/SAS/SATA drive bays |
| - M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) |
| System Cooling | |
| - Fans | 8 counter-rotating 40x40x56mm fans |
| - Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply | |
| - Options | 2x 1200W, 2x 2000W, 2x 1600W, 2x 2600W |
| - Redundant | 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies |
| - Dimensions | 73.5 x 40 x 265 mm |
| - AC Input | 800W: 100-127Vac / 50-60Hz, 1200W: 200-240Vac / 50-60Hz, 1200W: 230-240Vdc / 50-60Hz (for CCC only) |
| - Output | +12V Max: 66.7A / Min: 0A (100Vac-127Vac), Max: 100A / Min: 0A (200Vac-240Vac), Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) |
| Operating Environment | |
| - Operating Temperature | 10°C ~ 35°C (50°F ~ 95°F) |
| - Non-operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| - Operating Relative Humidity | 8% to 90% (non-condensing) |
| - Non-operating Relative Humidity | 5% to 95% (non-condensing) |
