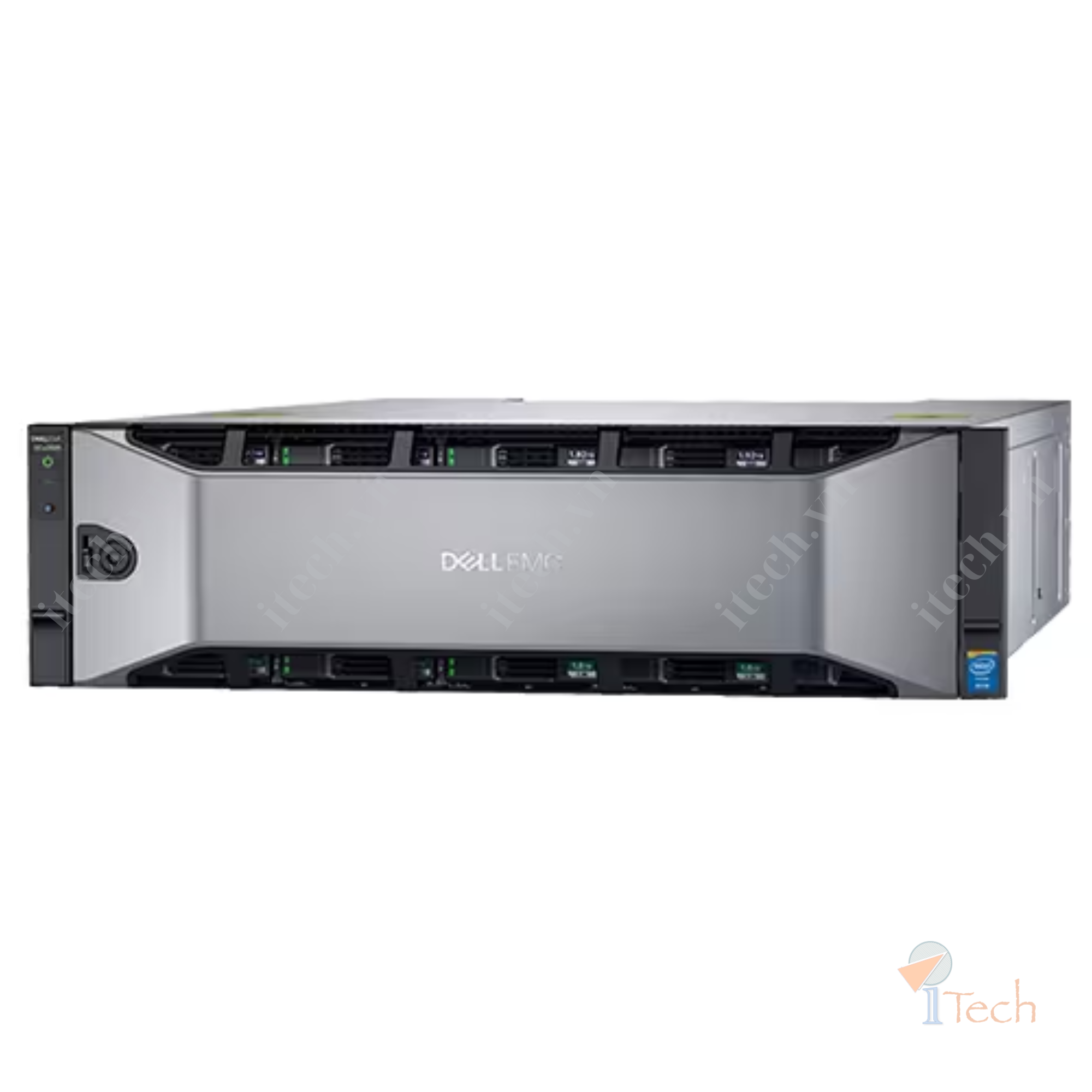

Dell EMC SCv3000 Storage là một giải pháp lưu trữ mạnh mẽ được thiết kế để đáp ứng nhu cầu của các môi trường doanh nghiệp đòi hỏi hiệu suất cao và tính sẵn sàng cao. Với khả năng mở rộng linh hoạt, SCv300 có thể hỗ trợ từ các ứng dụng flash tới các hệ thống lưu trữ truyền thống dựa trên đĩa cứng. Nó tích hợp các công nghệ như tự động phân tầng dữ liệu, mã hóa dữ liệu tại chỗ và hỗ trợ cho nhiều giao thức mạng như FC, iSCSI và SAS, mang lại sự linh hoạt và bảo mật cao cho dữ liệu của người dùng.
Specification | Details |
---|---|
Chassis Format | All-in-one with dual controllers, internal drive bays, networking, expansion options |
Rack Size | 3U |
Controllers | 2 hot-swappable per chassis (dual active) |
Processors | Intel® Xeon® Processor E5-2603v4, 1.7GHz, 6 cores |
System Memory | 32GB per SCv3xxx array (16GB per controller) |
Operating System | Dell Storage Center OS (SCOS) 7.2 or greater |
Internal Storage Capacity | SCv3000: 16 x 3.5” drive bays |
SCv3020: 30 x 2.5” drive bays | |
Expansion Capacity | SCv300: 16 x 3.5” drive bays (12Gb SAS) |
SCv320: 30 x 2.5” drive bays (12 Gb SAS) | |
SCv360: 60 x 3.5” drive bays (12Gb SAS) | |
Maximum Drive Count | 222 (internal plus external expansion) |
Max Raw Capacity | 1PB per array (SSD or HDD) |
Max Raw Capacity (NAS) | 1 PB per array with optional Dell EMC NX3000 Series Windows NAS appliance |
Storage Media | SAS and NL-SAS drives; SSDs and HDDs (15K, 10K, 7.2K RPM) |
Front-end Network Protocols | FC, iSCSI, SAS (supports simultaneous multiprotocol) |
Max 16Gb FC Ports | 8 per array (SFP+) |
Max 10Gb/1Gb iSCSI Ports | Up to 8 SFP+ or BaseT ports per array |
Max 12Gb SAS Ports | Up to 8 12Gb SAS ports |
Management Ports | 2 per array (1Gb BASE-T) |
Back-end Expansion Ports | 4 12Gb SAS (Wide-Port) per array |
Functional | All-flash, hybrid or HDD arrays |
Storage Format | Native block (SAN), file (NAS) with optional NX3000 Series Windows NAS appliance |
Data Optimization | Auto-tiering, thin provisioning, intelligent compression |
RAID Support | RAID 0, 1, 5, 6, RAID 10, RAID 10 DM |
Data Protection | Replication, continuous operations, disaster recovery |
Security | Data-at-rest encryption, self-encrypting drives |
Management | Dell Storage Manager, PowerShell API, RESTful API |
Federation | Multi-array management, workload migration |
Physical | 3U rack size, dimensions: Height 13.33”, Width 44.5 cm, Depth 78.5 cm |
Power | 2 hot-swappable 1485W power supplies, Voltage 200-240 VAC |
