Supermicro CSE-946SE2C-R1K66JBOD

Thương hiệu: Supermicro
Tình trạng: Còn hàng
Liên hệ

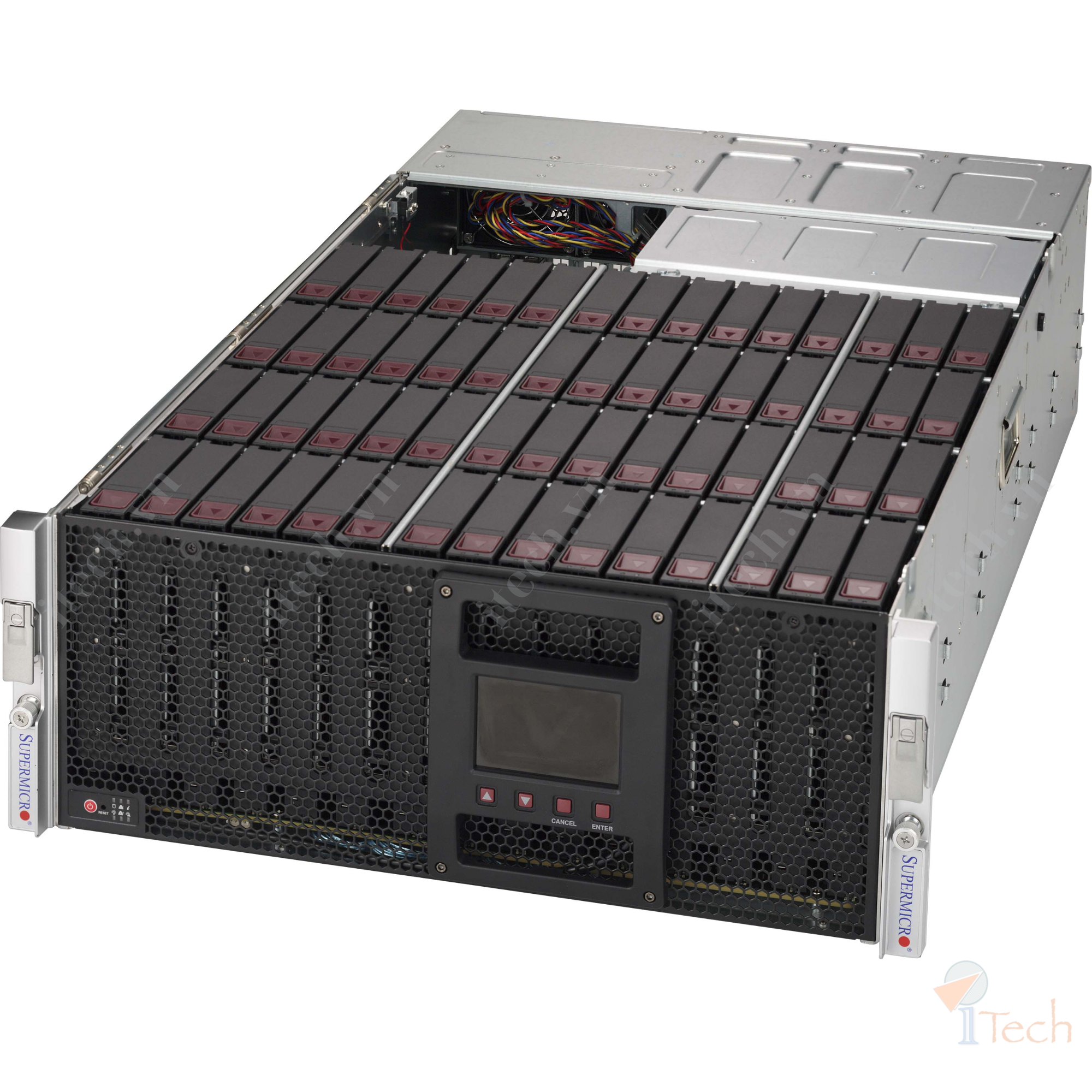

CSE-946SE2C-R1K66JBOD is an Extreme High Density and High Capacity Storage Chassis designed to support 60 hot-swappable 3.5-inch SAS/SATA drives.

  • It features Dual Expander Backplane Boards that support SAS3/2 HDDs with 12Gb/s throughput.
  • There are 8 Mini-SAS HD ports for internal or external cascading, allowing for high performance, high availability, or high redundancy configurations.
  • Ideal for cloud backup, data replication, or high-density archive storage applications.
ManufacturerSupermicro
Height

7" (178 mm)

Width

17.2" (437 mm)

Depth

30.2" (767.08 mm)

35.2" (894 mm) with cable management arm installed

Gross Weight

155 lbs (70.31 kg)

Net Weight

100 lbs (45.36 kg)

Packaging (W x H x L)

28" (711 mm) x 33.25" (845 mm) x 42.5" (1080 mm)

Power Efficiency

96%

Dimensions (L x W x H)

265 x 73.5 x 40 mm

Output Type

Backplanes (gold finger)

Power Distributor

PDB-PT946S-824

O/P: 12V/168A

+5V Max: 25A

+3.3V Max: 25A

-12V Max: 0.6A
