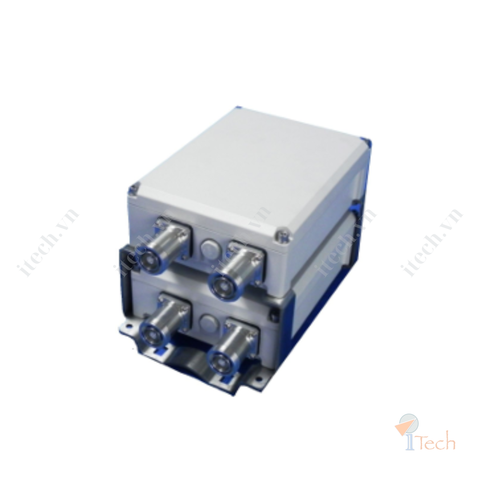

E15V95P26 là một bộ ghép kênh chéo kép của CommScope. Sản phẩm này được thiết kế để sử dụng trong các hệ thống truyền thông di động, với khả năng hoạt động trên dải tần số 698-787 MHz (USA 700, USA 750) và 824-894 MHz (CEL 850).
| Product Type | Coupler |
| Product Family | CBC78 |
| Color | Gray |
| Common Port Label | COMMON |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Interface Body Style | Long neck |
| Height | 200 mm | 7.874 in |
| Width | 150 mm | 5.906 in |
| Depth | 146 mm | 5.748 in |
| Ground Screw Diameter | 6.35 mm | 0.25 in |
| Impedance | 50 ohm |
| License Band, Band Pass | CEL 850, USA 700, USA 750 |
| dc/AISG Pass-through, combiner | Branch 1 |
| dc/AISG Pass-through, demultiplexer | Branch 1 |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Frequency Range, MHz (Band 1) | 698-787 |
| Frequency Range, MHz (Band 2) | 824-894 |
| Insertion Loss, maximum, dB (Band 1) | 0.25 |
| Insertion Loss, maximum, dB (Band 2) | 0.25 |
| Total Group Delay, maximum, ns (Band 1) | 25 |
| Total Group Delay, maximum, ns (Band 2) | 25 |
| Return Loss, minimum, dB (Band 1) | 22 |
| Return Loss, minimum, dB (Band 2) | 22 |
| Return Loss, typical, dB (Band 1) | 24 |
| Return Loss, typical, dB (Band 2) | 24 |
| Isolation, minimum, dB | 50 |
| Input Power, RMS, maximum, W | 500 |
| Input Power, PEP, maximum, W | 5000 |
| 3rd Order PIM, typical, dBc | -153 |
| 3rd Order PIM Test Method | 2 x 20 W CW tones |
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | 5%-100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
| Included | Mounting hardware |
| Volume | 4.4 L |
| Weight, net | 6.3 kg | 13.889 lb |
| Agency Classification | Designed, manufactured and/or distributed under this quality management system |
