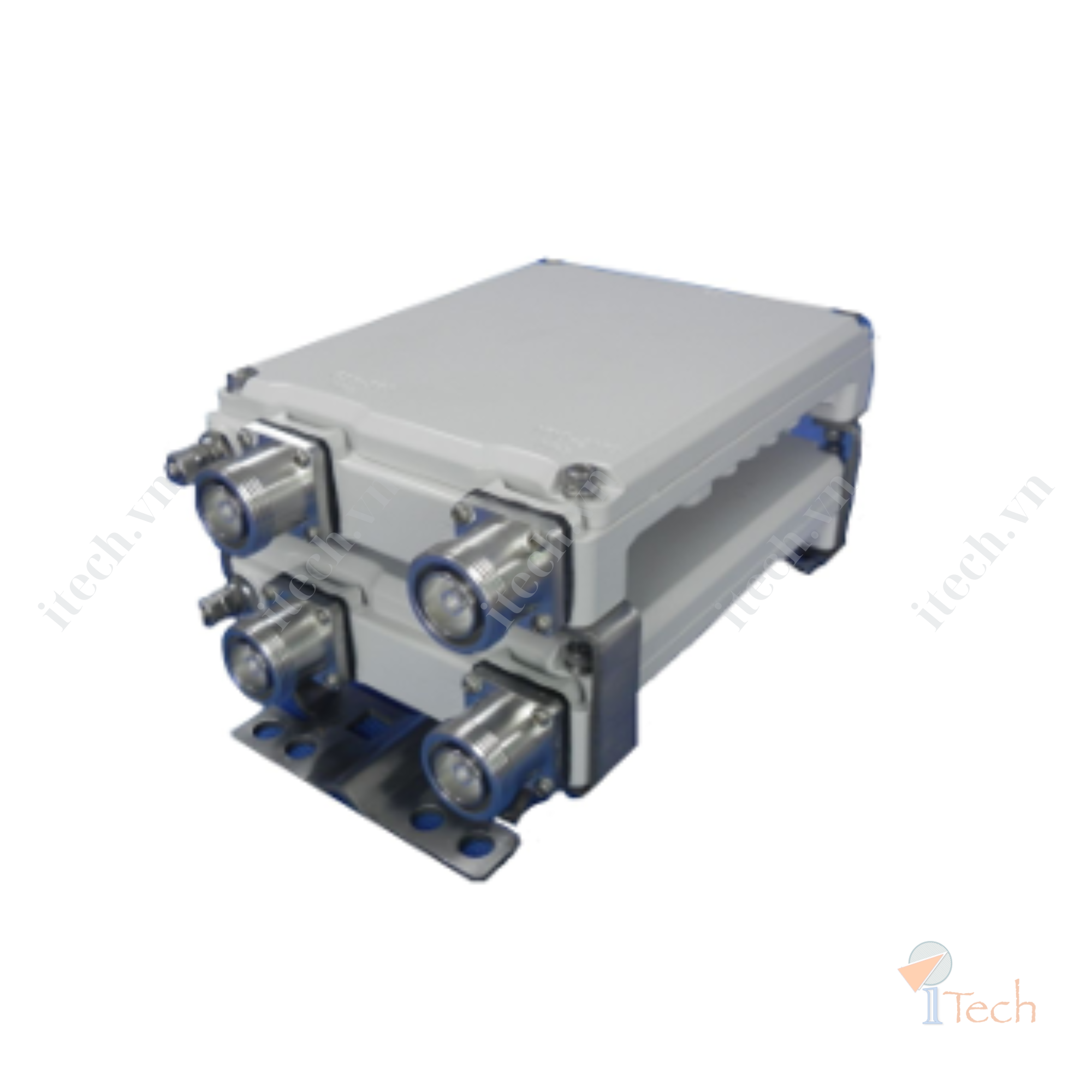

COMMSCOPE CBC721-DF-2X | E15V95P24 Twin Crossband Coupler, 698–960 MHz/1710–2170 MHz

Thương hiệu: COMMSCOPE
Tình trạng: Còn hàng
Liên hệ

E15V95P24 là bộ kết nối chéo băng tần kép, cho phép kết nối các thiết bị hoạt động ở băng 698-960 MHz và 1710-2170 MHz. Sản phẩm này được thiết kế để sử dụng trong các hệ thống truyền thông di động, cung cấp khả năng hỗ trợ các tiêu chuẩn công nghệ như LTE, GSM, UMTS.

Product typeCoupler
Product DescriptionTwin Crossband Coupler, 698–960 MHz/1710–2170 MHz
Replacement ProductCBC426T-DS-43, E14F05P31 (Twin Diplexer, 380–960 MHz/1695–2690 MHz)
Product FamilyCBC721
ColorGray
Common Port LabelCOM
Modularity2-Twin
MountingPole | Wall
Mounting Pipe HardwareBand clamps (2)
RF Connector Interface7-16 DIN Female
RF Connector Interface Body StyleMedium neck
Dimensions (Height x Width x Depth)196 mm x 153 mm x 94.5 mm
Ground Screw Diameter6.35 mm
Impedance50 ohm
Supported License BandsAPT 700, AWS 1700, CEL 850, CEL 900, DCS 1800, EDD 800, IMT 2100, LMR 750, LMR 800, LMR 900, PCS 1900, USA 700, USA 750
DC/AISG Pass-throughCombiner and Demultiplexer
Lightning Surge Current10 kA
Lightning Surge Current Waveform8/20 waveform
Insertion Loss (max)0.15 dB (698-894 MHz), 0.15 dB (894-960 MHz), 0.2 dB (1710-1850 MHz), 0.2 dB (1850-1990 MHz), 0.2 dB (1990-2170 MHz)
Return Loss (min)20 dB
Return Loss (typical)24 dB
Isolation (min)60 dB
Input Power, RMS (max)500 W
Input Power, PEP (max)5000 W
3rd Order PIM (typical)-153 dBc
3rd Order PIM Test Method2 x 20 W CW tones
Operating Temperature-40°C to +65°C (-40°F to +149°F)
Relative Humidity5% to 100%
Ingress ProtectionIP67
PackagingMounting hardware included
Net Weight5.2 kg (11.464 lb)
