Bộ lưu điện UPS - APC Smart-UPS C, 1000VA, Tower, 230V, 8x IEC C13 outlets, SmartConnect port-SMC1000IC

Thương hiệu: APC
Tình trạng: Còn hàng
Liên hệ
APC Smart-UPS C, Line Interactive, 1000VA, Tower, 230V, 8x ổ cắm IEC C13, cổng SmartConnect, USB và giao tiếp nối tiếp, AVR, LCD đồ họa
Bảo vệ nguồn điện mạng thông minh và hiệu quả từ cấp nhập cảnh đến thời gian chạy có thể mở rộng. UPS lý tưởng cho máy chủ, điểm bán hàng, bộ định tuyến, thiết bị chuyển mạch, trung tâm và các thiết bị mạng khác.
Bao gồm: Dây nguồn, cáp USB

Technical Specifications

Thông số kỹ thuậtChi tiết
Max Configurable Power (Watts)600 Watts / 1.0 kVA
Output Voltage DistortionLess than 5%
Output Frequency (sync to mains)50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages220V, 240V
TopologyLine interactive
Waveform TypeSine wave
Transfer Time6 ms typical, 10 ms maximum
Input Frequency50/60 Hz +/- 3 Hz Auto-sensing
Input Voltage Range for Main Operations170 - 300V Adjustable, 180 - 287V
Other Input Voltages220V, 240V
Battery TypeLead-acid battery
Typical Recharge Time3 hours
Nominal Battery Voltage24 V
Replacement BatteryAPCRBC142
Expected Battery Life (Years)3 - 5
RBC Quantity1
Battery Charge Power (Watts)56 Watts
RuntimeDependent on load and configuration
Efficiency Graph:View Efficiency Graph

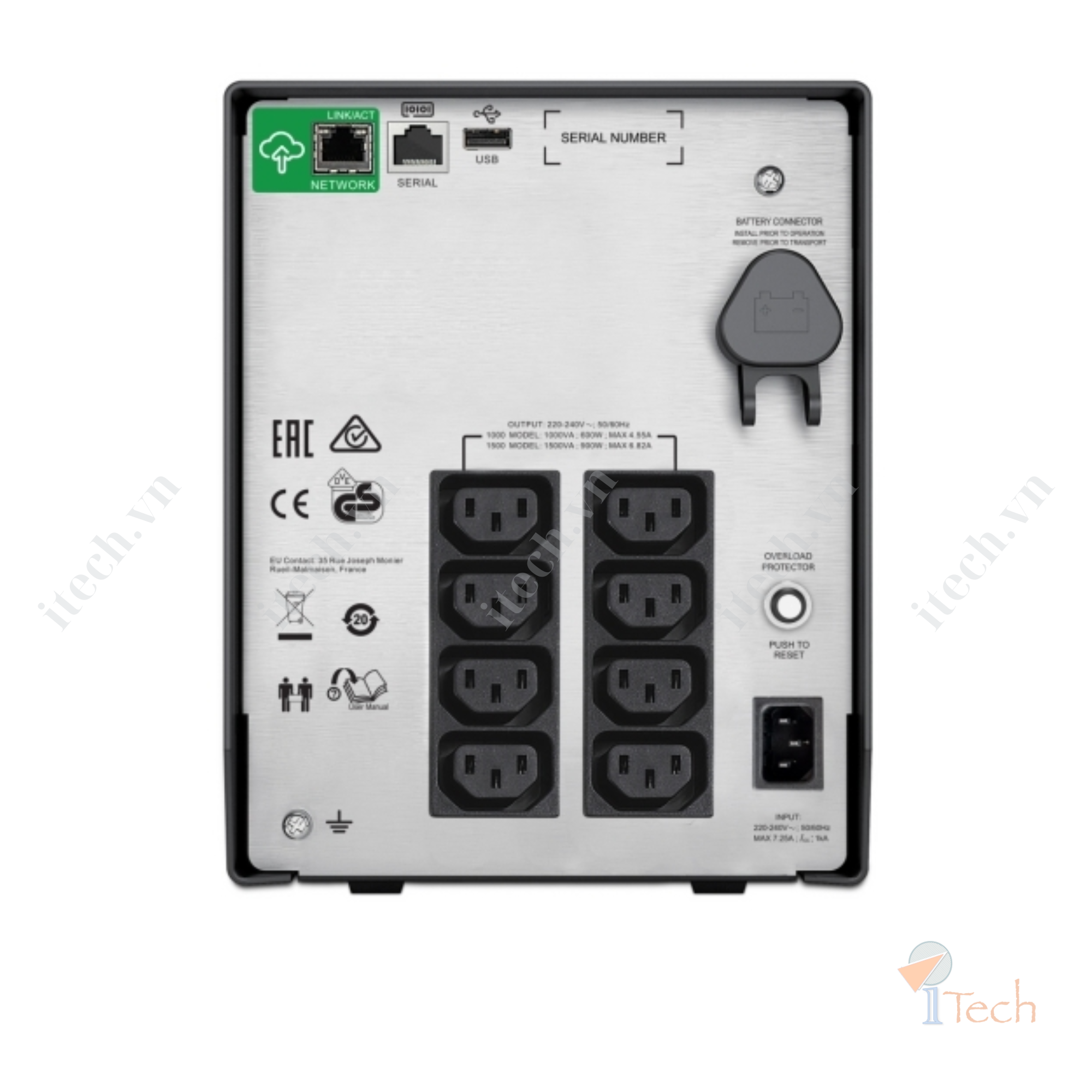

Interface Port(s)RJ-45 Serial, USB

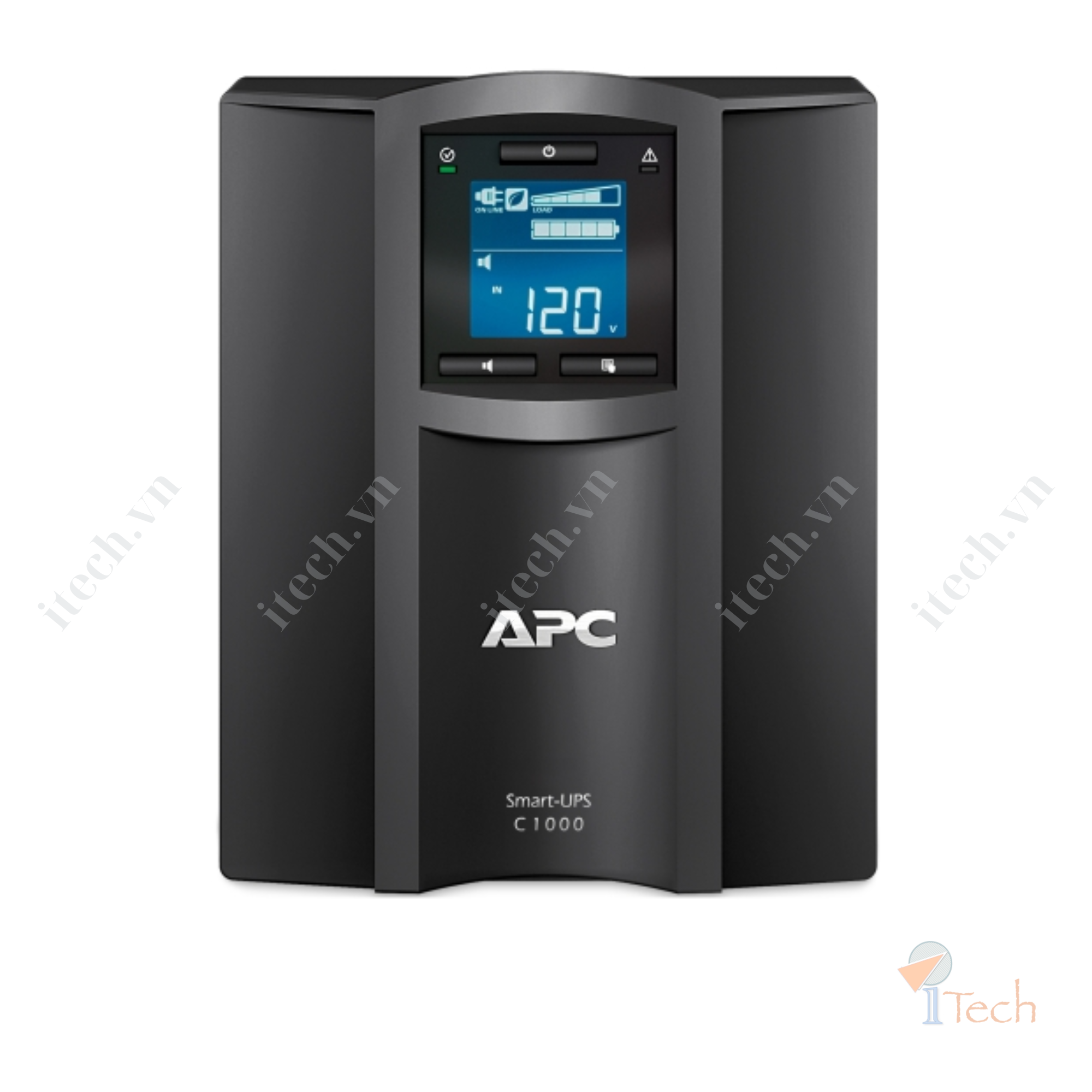

Control PanelMultifunction LCD status and control console
Surge Protection and FilteringSurge energy rating: 455 Joules, multi-pole noise filtering, 0.3% IEEE surge let-through
Surge Protection and Filtering Graph:meets UL 1449
Maximum Height219 mm (21.9 cm)
Maximum Width171 mm (17.1 cm)
Maximum Depth439 mm (43.9 cm)
Net Weight17.27 kg
Shipping Weight19.55 kg
Shipping Height376 mm (37.6 cm)
Shipping Width595 mm (59.5 cm)
Shipping Depth328 mm (32.8 cm)
ColorBlack
Operating Temperature0 - 40°C (32 - 104°F)
Operating Relative Humidity0 - 95% non-condensing
Operating Elevation0 - 3048 meters (0 - 10,000 feet)
Storage Temperature-15 - 45°C (5 - 113°F)
Storage Relative Humidity0 - 95% non-condensing
Storage Elevation0 - 15,240 meters (0 - 50,000 feet)
Audible Noise at 1 Meter from Surface41.0 dBA
Online Thermal Dissipation100.0 BTU/hr
