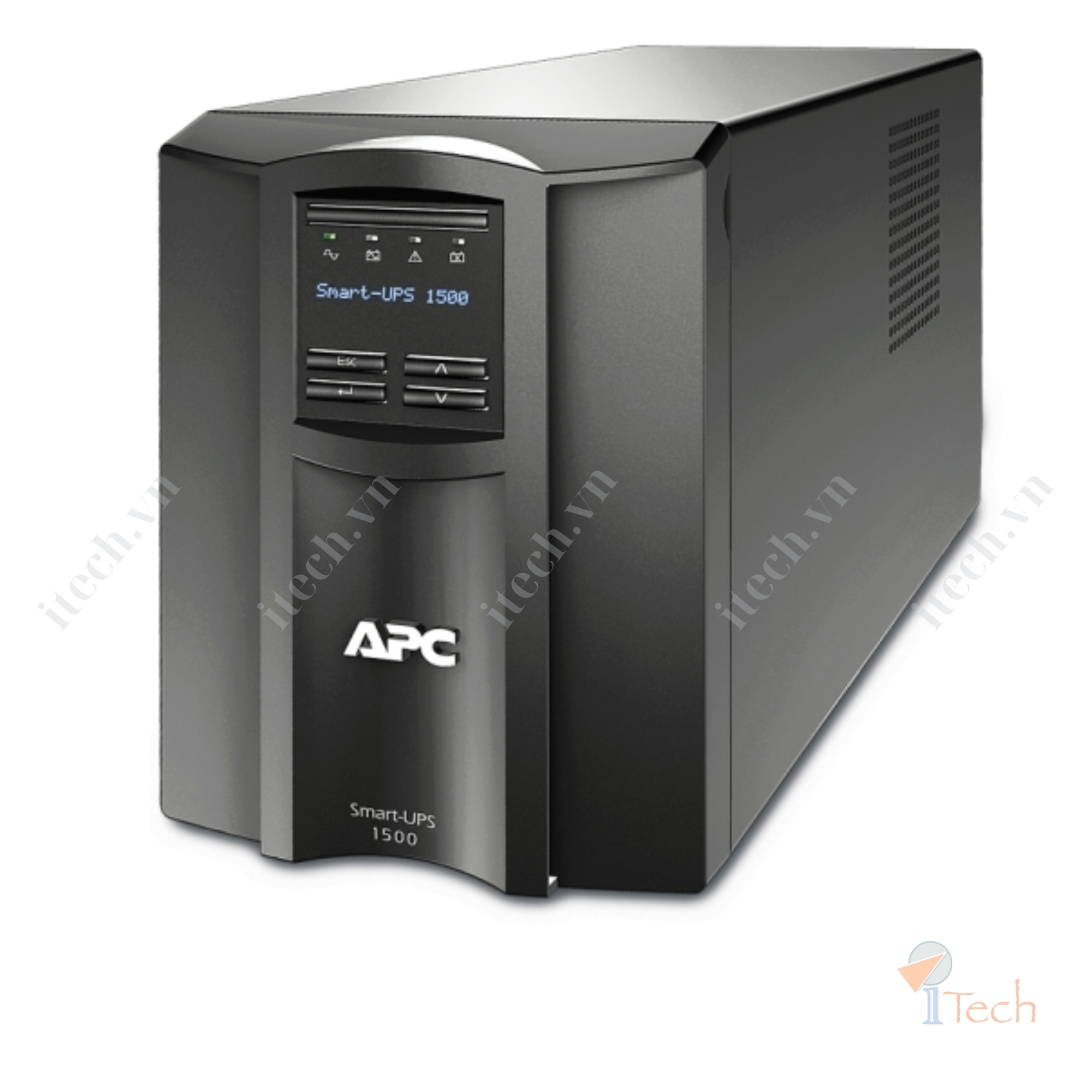

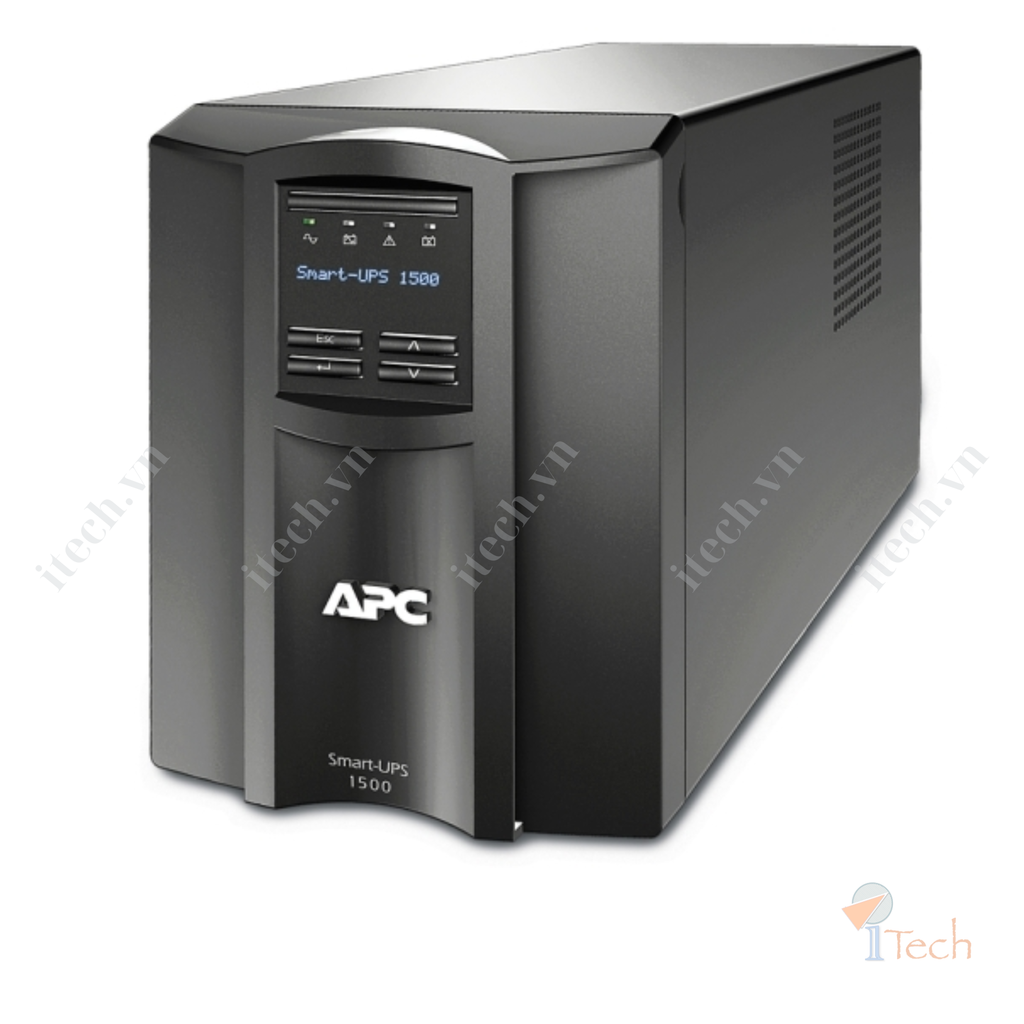

Bộ lưu điện APC Smart-UPS, Line Interactive, 1500VA, Tower, 230V, 8x IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCD-SMT1500IC

Thương hiệu: APC
Tình trạng: Còn hàng
Liên hệ
Bộ lưu điện thông minh APC, Tương tác dòng, 1500VA, Tower, 230V, 8x ổ cắm IEC C13, Cổng SmartConnect + SmartSlot, AVR, LCD
Bảo vệ nguồn điện mạng thông minh và hiệu quả từ cấp nhập cảnh đến thời gian chạy có thể mở rộng. UPS lý tưởng cho máy chủ, điểm bán hàng, bộ định tuyến, thiết bị chuyển mạch, trung tâm và các thiết bị mạng khác.
Bao gồm: Hướng dẫn cài đặt, cáp USB

Technical Specifications

CategorySpecification
Output
Max Configurable Power (Watts)1.0kWatts / 1.5kVA
Output Voltage NoteConfigurable for 220V, 230V, or 240V nominal output voltage
Output Voltage DistortionLess than 5%
Output Frequency (sync to mains)50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages220V, 240V
TopologyLine interactive
Waveform TypeSine wave
Transfer Time6 ms typical / 10 ms maximum
Input
Input Frequency50/60 Hz +/- 3 Hz Auto-sensing
Input Voltage Range151 - 302V Adjustable, 160 - 286V
Number of Power Cords1
Other Input Voltages220V, 240V
Batteries & Runtime
Battery TypeLead-acid battery
Typical Recharge Time3 hours
Replacement BatteryRBC7
Expected Battery Life3 - 5 years
RBC Quantity1
Battery Charge Power136 Watts
RuntimeView Runtime Graph
EfficiencyView Efficiency Graph
Communications & Management
Interface Port(s)SmartSlot, USB
Control PanelMultifunction LCD status and control console
Available SmartSlot™ Interface Qty1
Surge Protection and Filtering
Surge Energy Rating459 Joules
FilteringFull-time multi-pole noise filtering: 0.3% IEEE surge let-through; zero clamping response time; meets UL 1449
Physical
Maximum Height219 mm (21.9 cm)
Maximum Width171 mm (17.1 cm)
Maximum Depth439 mm (43.9 cm)
Net Weight24.09 kg
Shipping Weight27.23 kg
Shipping Height376 mm (37.6 cm)
Shipping Width595 mm (59.5 cm)
Shipping Depth328 mm (32.8 cm)
ColorBlack
Environmental
Operating Temperature0 - 40°C
Operating Relative Humidity0 - 95%
Operating Elevation0 - 3048 meters
Storage Temperature-15 - 45°C
Storage Relative Humidity0 - 95%
Storage Elevation0 - 15240 meters
Audible Noise45.0 dBA at 1 meter from surface of unit
Online Thermal Dissipation135.0 BTU/hr
Conformance
ApprovalsCE, EAC, RCM, VDE
