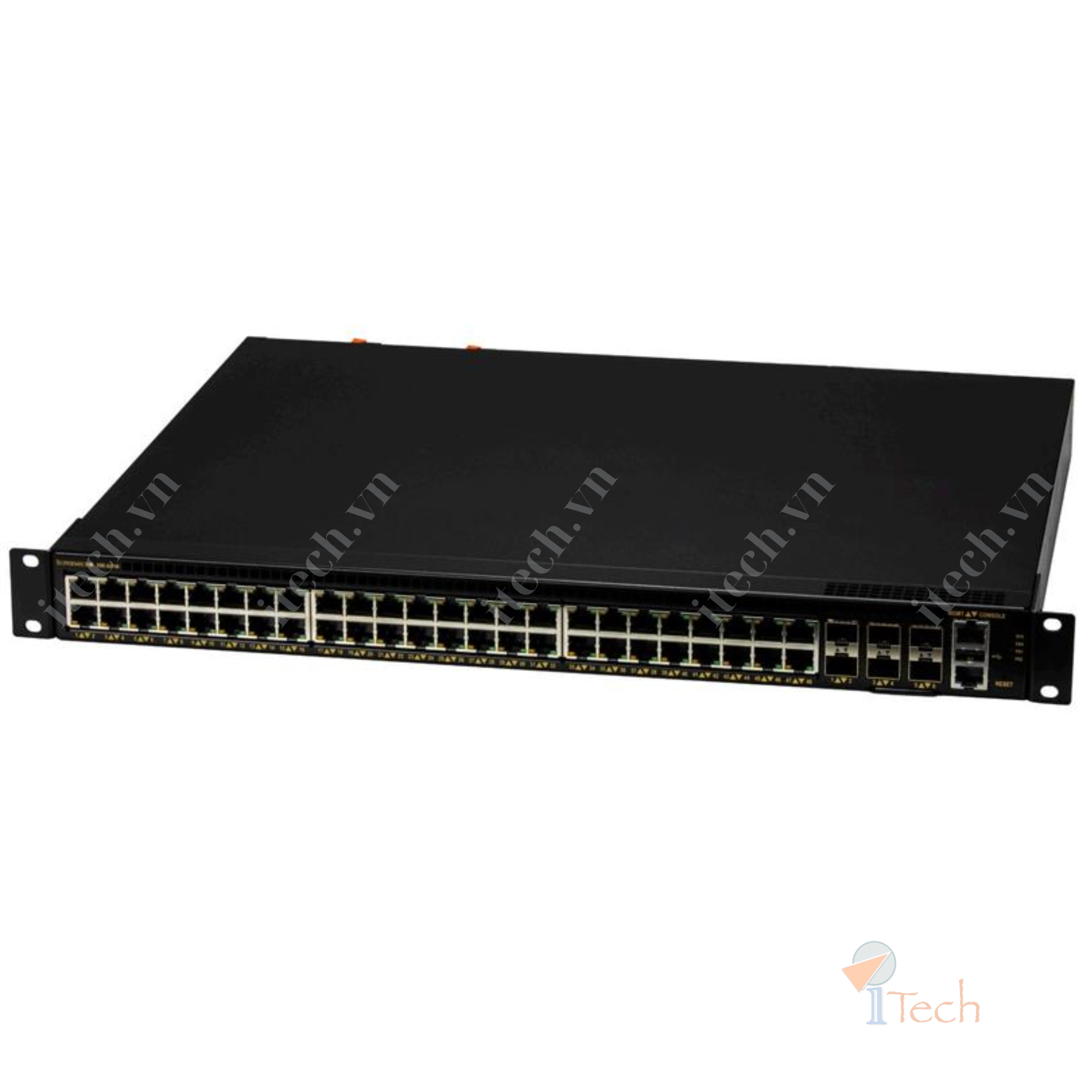

SSE-G3748/R-SMIS là Bộ chuyển mạch Ethernet lớp 2/3 bổ sung cho dòng sản phẩm chuyển mạch đang phát triển của Supermicro trong lĩnh vực Mạng mở. Dòng SSE-G3748 cung cấp cho khách hàng sự linh hoạt để sử dụng nó như một bộ chuyển đổi quản lý/IPMI chuyên dụng hoặc bộ chuyển đổi dữ liệu cung cấp nền tảng lý tưởng để quản lý và duy trì các tài nguyên đó theo cách phù hợp với nhu cầu của tổ chức
| Main Specifications | ||
| Device Type | 25G Ethernet Switch | |
| Interface Supported | 10M, 100M, 1G, 10G, 25G | |
| Form Factor | 1U form factor | |
| Type | Reverse Airflow (back to front) | |
| Dimensions (WxDxH) | 445 x 356 x 43.5 mm (17.5 x 14 x 1.7 inches) | |
| Weight | 8 kg (with 2 PSUs) | |
| Performance | ||
| Switching Capacity | 396Gbps | |
| System Cooling | ||

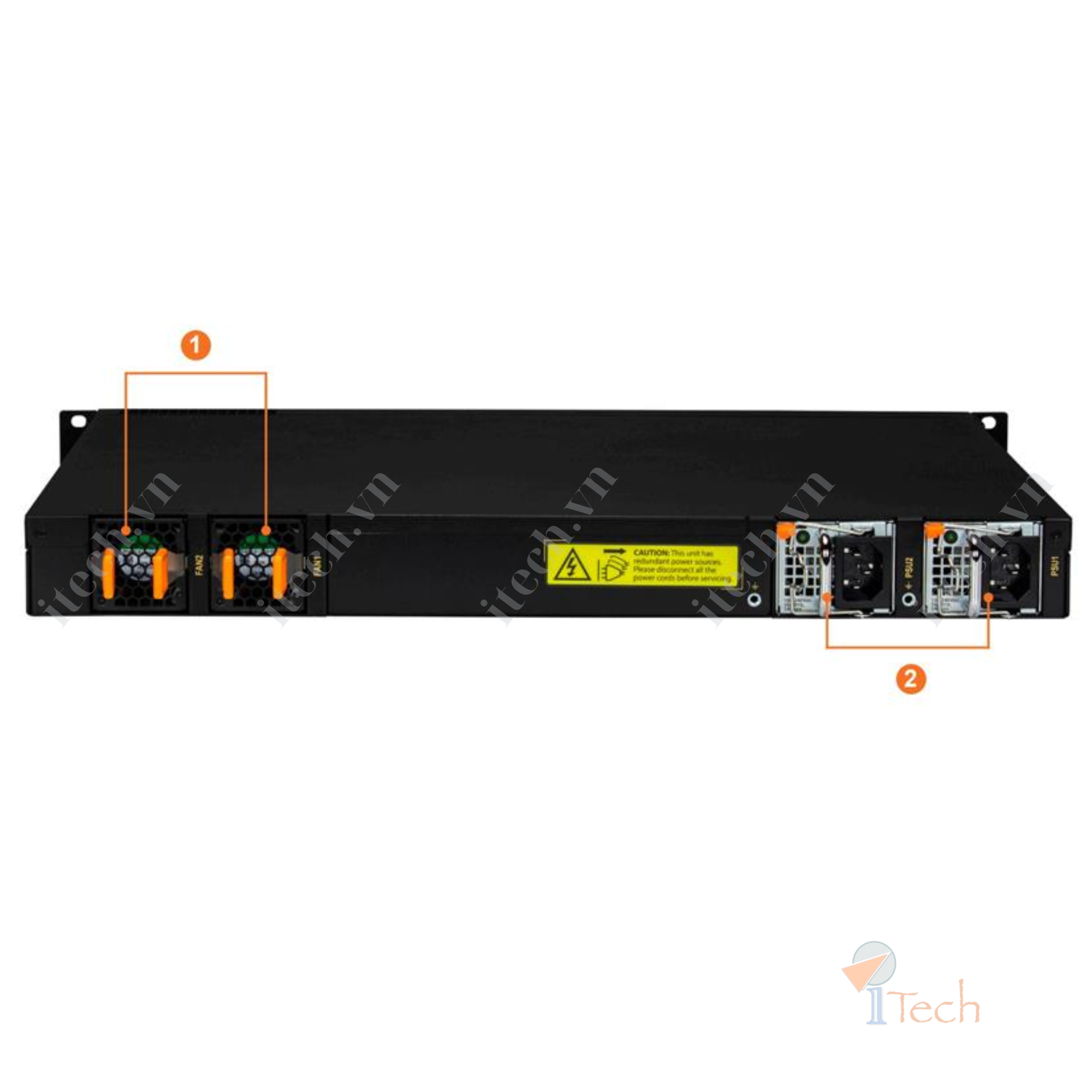

| Fans/Air Shroud | Hot Swappable 1+1 redundant Fan Modules | |
| Power Supply | ||
| Power Supply | 150W Maximum Power (with Pluggable Optic), Hot-pluggable Redundant power supply | |
| Networking | ||
| Layer Support | Layer 2: VLAN, VLAN Trunking, MAC Aging, LLDP, LACP, 802.1w Rapid Spanning Tree, 802.1s Multiple Spanning Tree Protocol, 4096 VLANs, MLAG, Jumbo Frames, IGMP v1/v2/v3 snooping, Storm Control Layer 3: Static Routing, RIPv2, OSPF, BGP, Multipath Routing (ECMP), VRRP | |
| Management Features | SNMP MIBs, Syslog, Critical Resource Monitoring, Mirroring, TACACS+, Sensor transceiver monitoring | |
| Networking Features | RS-232 Serial Console Port & GUI, USB Port, SNMP v1, v2, v3, Management over IPv6, Telnet and SSHv2, Syslog, Industry Standard CLI & GUI, System Logging, Environment monitoring | |
| Controller Type | Embedded X86 Linux-based controller | |
| QoS | 8 priority queues per port, Strict priority queueing, 802.1p based classification, DSCP based classification and remarking, Egress shaping / Weighted round robin (WRR), Explicit Congestion Notification (ECN) marking, 802.1Qbb Per-Priority Flow Control (PFC), 802.1Qaz Enhanced Transmission Selection (ETS), Data Center Bridging Extensions (DCBX) | |
| ACL | IP ACL permit/deny, MAC ACLs, Dynamic ACL upgrade, ACL Statistics, DHCP Relay / Snooping, Rate limiting | |
| Utilities | NTP, ZTP | |
| Safety and Compliance | ||
| Safety | UL 60950-1, EN 60950-1, IEC 60950-1, CAN/CSA-C22.2 No. 60950, AS/NZS 60950-1GB4943, GB4943, EN 60825-1 | |
| Electromagnetic Compatibility | 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A, BSMI CMS 13438 Class A, EN50082-1, EN61000-6-1, EN55024, CISPR24, EN300386, KN 61000-4 series | |
| Software / System Requirements | ||
| OS Supports | SMIS OS (pre-loaded) | |
| Expansion / Connectivity | ||
| Expansion / Connectivity | Forty-eight 1Gbps RJ45 Ethernet ports Six 25G/10Gbps SFP28/SFP+ uplinks | |
| Miscellaneous | ||
| Compliant Standards | RoHS Compliant | |
