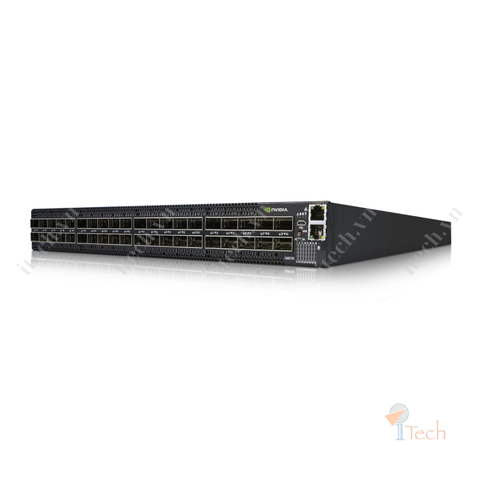

Bộ chuyển mạch NVIDIA MQM8700-HS2F - Mellanox Quantum QM8700 40-Port 200GbE QSFP56 HDR InfiniBand Network Switch

Thương hiệu: Nvidia
Tình trạng: Còn hàng
Liên hệ

NVIDIA MQM8700-HS2F Quantum HDR InfiniBand Switch là bộ chuyển mạch Ethernet 1U hiệu suất cao được thiết kế cho các trung tâm dữ liệu và mạng doanh nghiệp. Nó có 40 cổng HDR 200Gb/s không chặn, có khả năng cung cấp thông lượng dữ liệu tổng hợp lên tới 16Tb/s với độ trễ chuyển đổi dưới 130ns. Công tắc hỗ trợ nhiều tốc độ, bao gồm 10M, 100M, 1G, 10G và 25G, đồng thời có thể xử lý tới 80 cổng HDR100 100Gb/s bằng cáp chia



Performance200Gb/s per port
40 x HDR 200Gb/s ports in a 1U switch
80 x HDR100 100Gb/s ports (using splitter cables)
16Tb/s aggregate switch throughput,Sub-130ns switch latency
Switch Radix40 non-blocking ports with aggregate data throughput up to 16Tb/s
Connectors and CablingQuad small form-factor pluggable (QSFP56) connectors; passive or active copper or active fiber cable; optical module
Power Supply1+1 redundant and hot-swappable power
Input range: 100-127VAC, 200-240VAC
80 Gold+ and ENERGY STAR certified power supplies
Management Ports1x RJ45, 1x console port: RS232, 1x micro USB
CPUBroadwell ComEx D-1508 2.2GHz
System MemorySingle 8GB
SoftwareMLNX-OS
System Weight1 PSU: 11.4kg, 2 PSUs: 12.48kg
System DimensionsHeight: 1.7 in (43.6 mm), Width: 17 in (433.2 mm), Depth: 23.2 in (590.6 mm)
Mount Rack1U rack mount
Operating ConditionsTemperature: Operating: 0ºC-40ºC, Non-operating: -40ºC-70ºC, Humidity: Operating: 10%-85% non-condensing, Non-operating: 10%-90% non-condensing, Altitude: up to 3,200m
EMC (Emissions)CE, FCC, VCCI, ICES, and RCM
SafetyRoHS Compliant
