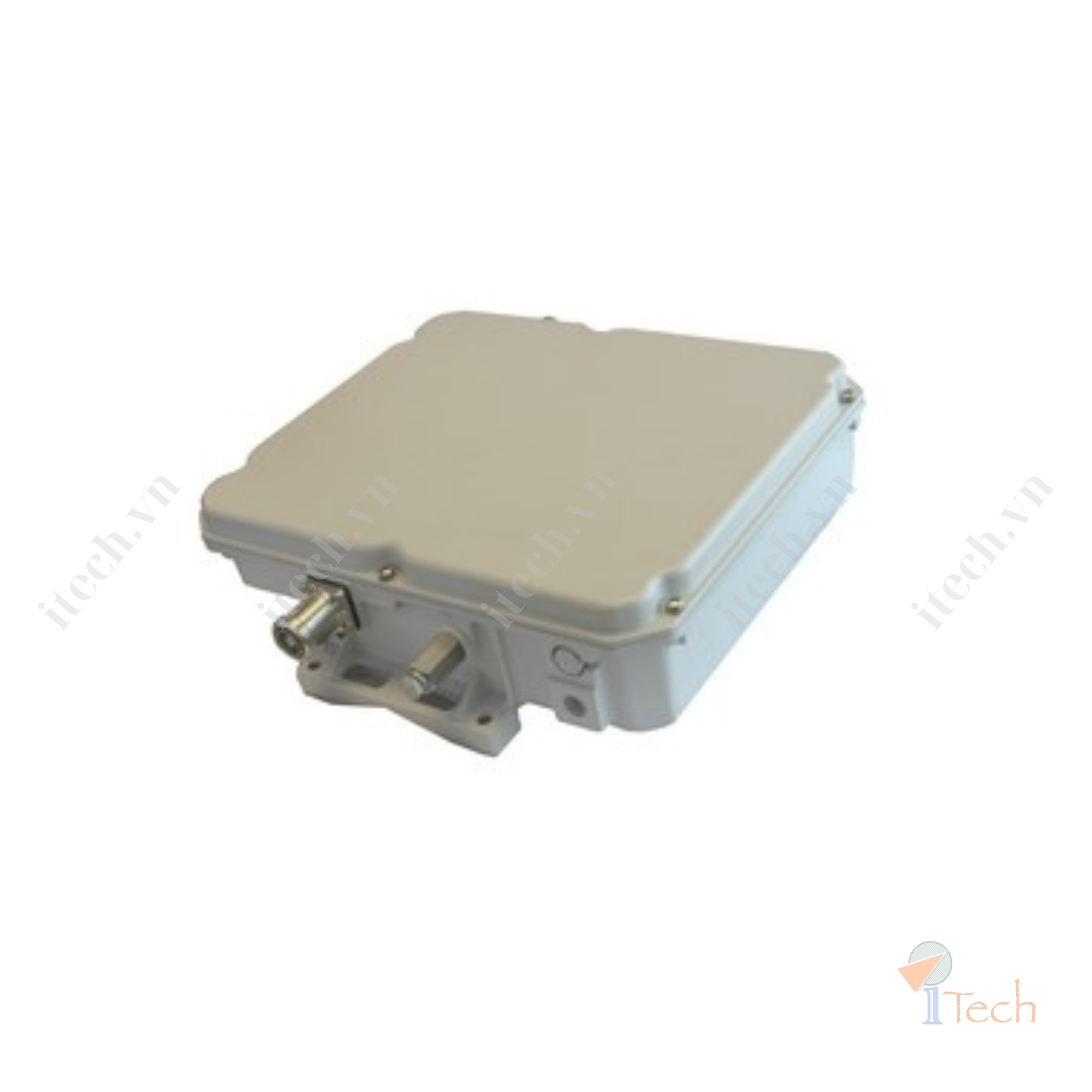

Bộ khuếch đại tháp được sử dụng trong các hệ thống thông tin di động, có khả năng hoạt động trên hai băng tần 850/1900 MHz. Sản phẩm được thiết kế và sản xuất theo tiêu chuẩn chất lượng ISO 9001, đáp ứng các yêu cầu vận hành khắc nghiệt trong môi trường ngoài trời. Với kích thước gọn nhẹ, bộ khuếch đại này có thể được lắp đặt trực tiếp trên cột thu phát sóng. Sản phẩm cung cấp tính năng khuếch đại tín hiệu, vừa đủ để đáp ứng các yêu cầu của hệ thống thông tin di động.
Product Name | ETD819H-12UB, E15Z01P06 |
Description | Tower Mounted Amplifier, Diplexed Dual Band 850/1900 |
Electrical Specifications Rx (Uplink) | |
Bandwidth | 60.00 MHz |
License Band | PCS |
Frequency Band | 1850 – 1910 MHz |
Gain | 12 dB |
Gain Tolerance | +1.3/-1.0 |
Noise Figure, Mid Band, typical | 1.60 dB @ 12 dB |
Noise Figure, Full Band, typical | 1.80 dB @ 12 dB |
Input P1dB, typical | -1 dBm |
Output IP3, minimum | 21 dBm @ 12 dB |
Return Loss, minimum | 18 dB |
Insertion Loss, Bypass Mode, typical | 2.60 dB |
Return Loss, Bypass Mode, typical | 18 dB |
Tx Band Rejection | 80 dB |
Group Delay Variation, maximum | 100 ns @ 5 MHz |
Total Group Delay, maximum | 180 ns |
Electrical Specifications Tx (Downlink) | |
Bandwidth | 60.00 MHz |
License Band | PCS |
Frequency Band | 1930 – 1990 MHz |
Insertion Loss, maximum | 0.70 dB |
Return Loss, minimum | 18 dB |
3rd Order IMD | -112 dBm |
3rd Order IMD Test Method | Two +43 dBm carriers |
Input Power, RMS, maximum | 300 W |
Input Power, PEP, maximum | 3000 W |
Group Delay Variation, maximum | 20 ns @ 5 MHz |
Total Group Delay, maximum | 60 ns |
Electrical Specifications 2 Rx (Uplink) | |
License Band | Cellular |
Frequency Band | 824 – 849 MHz |
Bandwidth | 25.00 MHz |
Gain | 12 dB |
Gain Tolerance | +1.3/-1.0 |
Noise Figure, Mid Band, typical | 1.50 dB @ 12 dB |
Noise Figure, Full Band, typical | 1.90 dB @ 12 dB |
Input P1dB, typical | 2 dBm |
Output IP3, mimimum | 25 dBm |
Return Loss, minimum | 18 dB |
Insertion Loss, Bypass Mode, typical | 2.40 dB |
Return Loss, Bypass Mode, typical | 18 dB |
Tx Band Rejection | 80 dB |
Group Delay Variation, maximum | 270 ns @ 5 MHz |
Total Group Delay, maximum | 370 ns |
Electrical Specifications 2 Tx (Downlink) | |
Bandwidth | 25.00 MHz |
License Band | Cellular |
Frequency Band | 869 – 894 MHz |
Insertion Loss, maximum | 0.60 dB |
Return Loss, minimum | 18 dB |
3rd Order IMD | -112 dBm |
3rd Order IMD Test Method | Two +43 dBm carriers |
Input Power, RMS, maximum | 500 W |
Input Power, PEP, maximum | 5000 W |
Group Delay Variation, maximum | 25 ns @ 5 MHz |
Total Group Delay, maximum | 65 ns |
Electrical Specifications | |
Operating Current at Voltage | 240 mA @ 10–18 V |
Voltage | 7–30 Vdc |
Operating Current Tolerance | ±30 |
Alarm Functionality | Failure current |
Failure Current Consumption | 30–170 mA @ 10-18 V |
Lightning Surge Capability Test Method | IEEE C62.42-1991 |
Lightning Surge Capability Waveform | 8/20 waveform |
Lightning Surge Current | 5 kA |
Mechanical Specifications | |
Connector Interface | 7-16 DIN Female |
Connector Interface Style | Long neck |
Ground Screw Diameter | 6.00 mm |
Wind Loading, maximum | 95 N @ 115 km/h, 21 lbf @ 115 km/h |
Finish | Painted |
Color | Gray |
Mounting Pipe Diameter | 40–120 mm |
Environmental Specifications | |
Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
Relative Humidity | Up to 100% |
Ingress Protection Test Method | IEC 60529:2001, IP67 |
