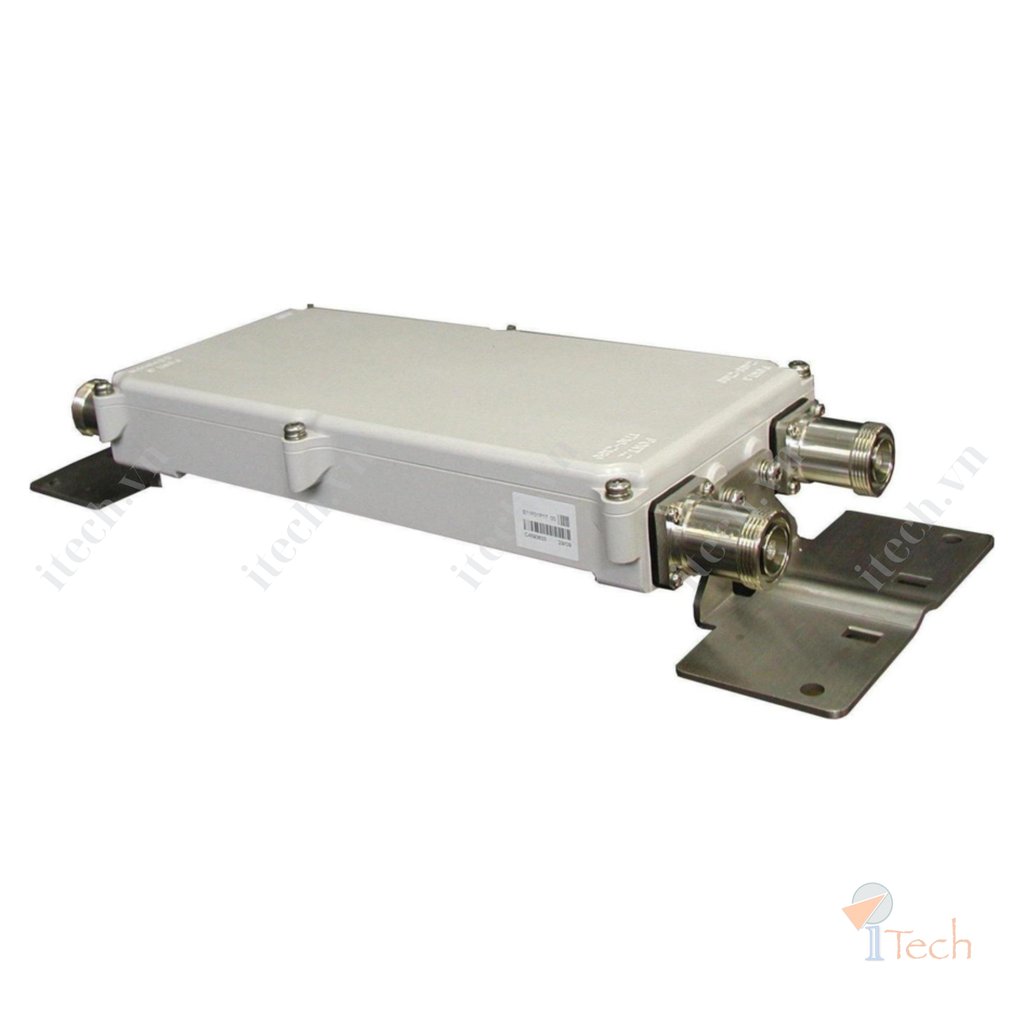

Đây là một bộ diplexer băng tần kép của CommScope, dòng sản phẩm CBC1726old, có các tính năng chính như sau:
| Product Type | Diplexer |
| Product Family | CBC1726old |
| Color | Gray |
| Common Port Label | PORT 3 COMMON |
| Modularity | Yes |
| Mounting | Pipe, Wall |
| Mounting Hardware | Band clamps (2) |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Interface Body Style | Long neck |
| Height | 300 mm |
| Width | 136 mm |
| Depth | 46.2 mm |
| Ground Screw Diameter | 6 mm |
| Mounting Pipe Diameter Range | 40-160 mm |
| Impedance | 50 Ω |
| Supported Frequency Bands | AWS 1700, DCS 1800, IMT 2100, IMT 2600, PCS 1900, TDD 2600 |
| Lightning Surge Current | 3 kA |
| Lightning Surge Current Waveform | 10/350 |
| Port 1 Frequency Range | 2400-2700 MHz |
| Port 2 Frequency Range | 1710-2180 MHz |
| Insertion Loss, typical | 0.25 dB (Port 1), 0.3 dB (Port 2) |
| Return Loss, minimum | 19 dB |
| Isolation, minimum | 50 dB |
| 3rd Order PIM, typical | -160 dBc |
| 3rd Order PIM Test Method | Two +43 dBm carriers |
| Operating Temperature | -40°C to +60°C |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection | IEC 60529:2001, IP67 |
| Included Accessories | Mounting hardware |
| Packaging Volume | 1.9 L |
| Net Weight | 4.3 kg |
