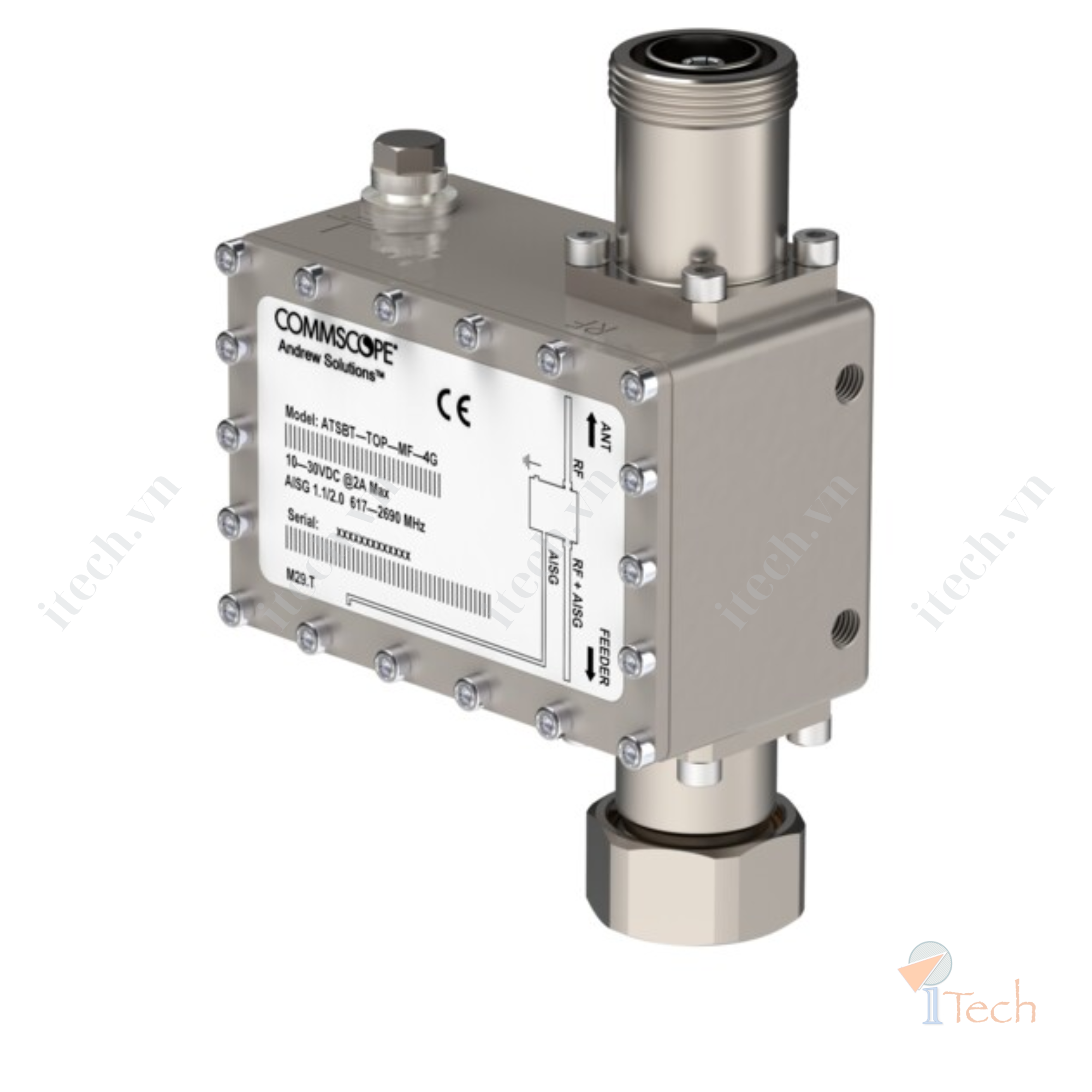

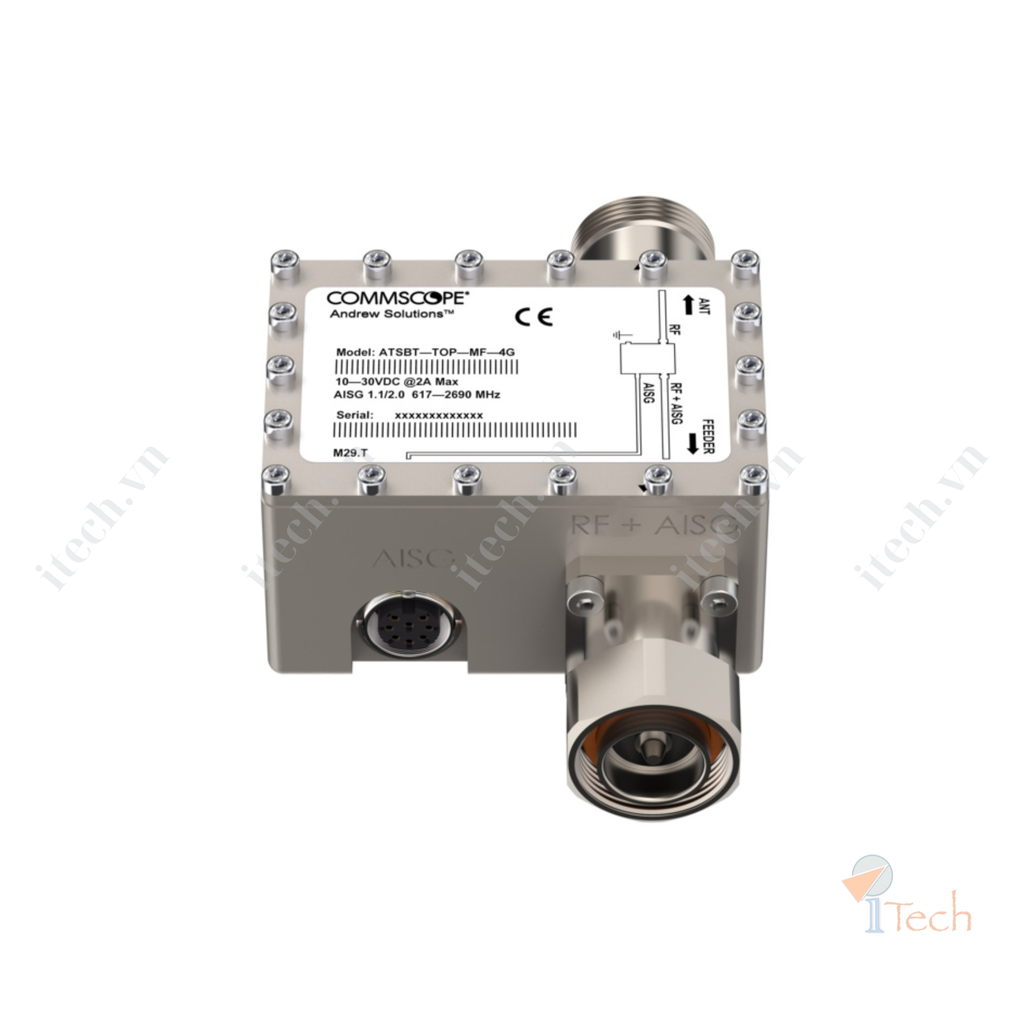

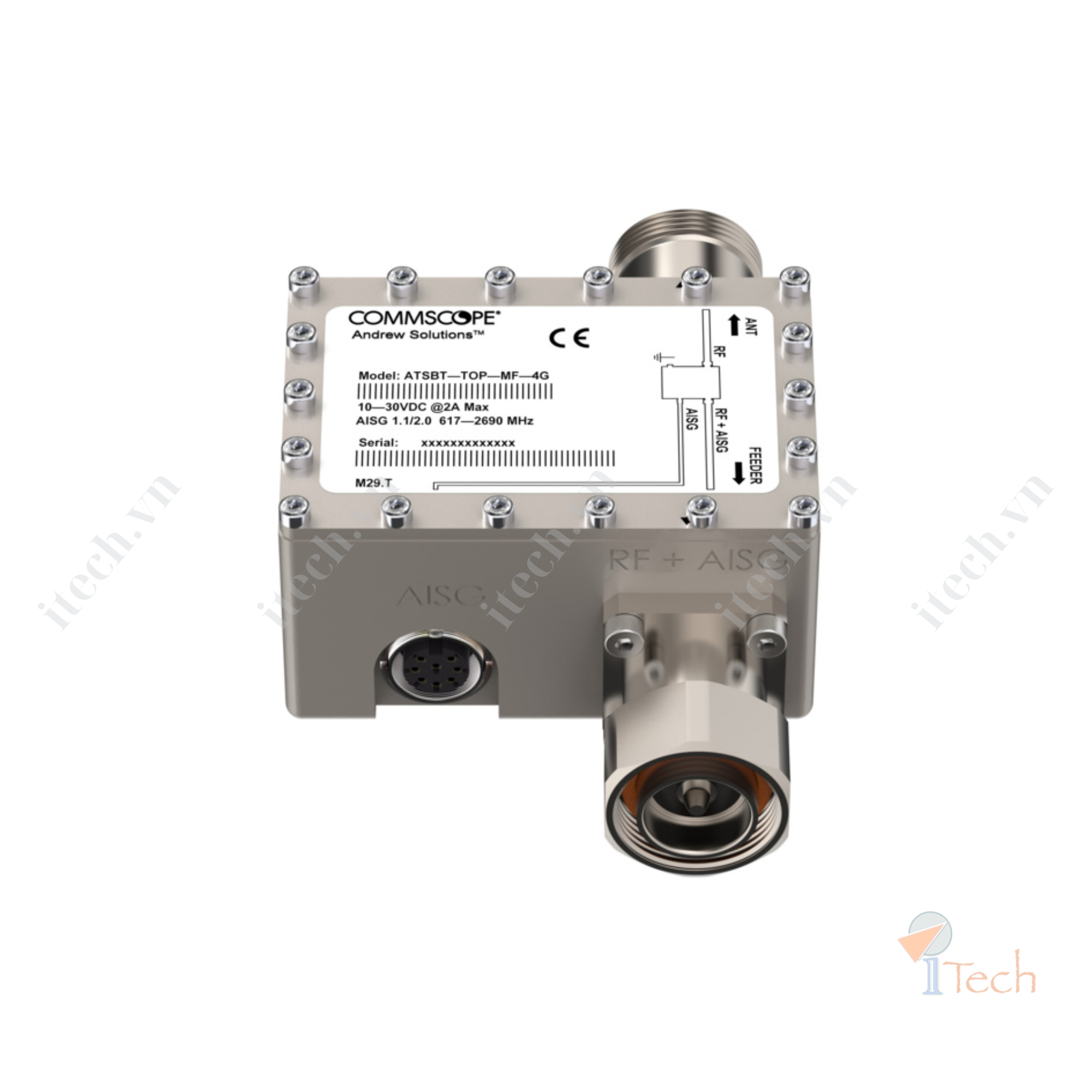

| Product Type | RET bias tee |
| AISG Input Connector | 8-pin DIN Female |
| Antenna Interface | 7-16 DIN Female |
| Antenna Interface Signal | RF, DC Blocked |
| BTS Interface | 7-16 DIN Male |
| BTS Interface Signal | AISG data, RF, DC |
| Color | Silver |
| EU Certification | CE |
| Grounding Lug Thread Size | M8 |
| Smart Bias Tee Type | 10–30 V Top |
| Height | 143 mm (5.63 in) |
| Width | 94 mm (3.701 in) |
| Depth | 50 mm (1.969 in) |
| 3rd Order IMD | -158 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss, typical | 0.1 dB |
| Electromagnetic Compatibility (EMC) | CFR 47 Part 15, Subpart B, Class B; EN 55022, Class B; ICES-003 Issue 4 CAN/CSA-CEI/IEC CISPR 22:02 |
| Impedance | 50 ohm |
| Interface Protocol Signal | Data, DC |
| Lightning Surge Capability | 5 times @ -3 kA, 5 times @ 3 kA |
| Lightning Surge Capability Test Method | IEC 61000-4-5, Level X |
| Lightning Surge Capability Waveform | 1.2/50 voltage and 8/20 current combination waveform |
| Operating Frequency Band | 617 – 2690 MHz |
| Power Consumption, maximum | 0.6 W |
| Protocol | AISG 1.1, AISG 2.0 |
| RF Power, maximum | 250 W @ 1850 MHz, 500 W @ 850 MHz |
| Voltage Range | 10–30 Vdc |
| VSWR, typical | 1.17:1 |
| Return Loss, typical | 22 dB |
| Material Type | Aluminum |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP66 |
| Weight, net | 0.8 kg (1.764 lb) |
| Agency Compliance | CE, China-RoHS, ISO 9001:2015, RoHS, UK-RoHS |
