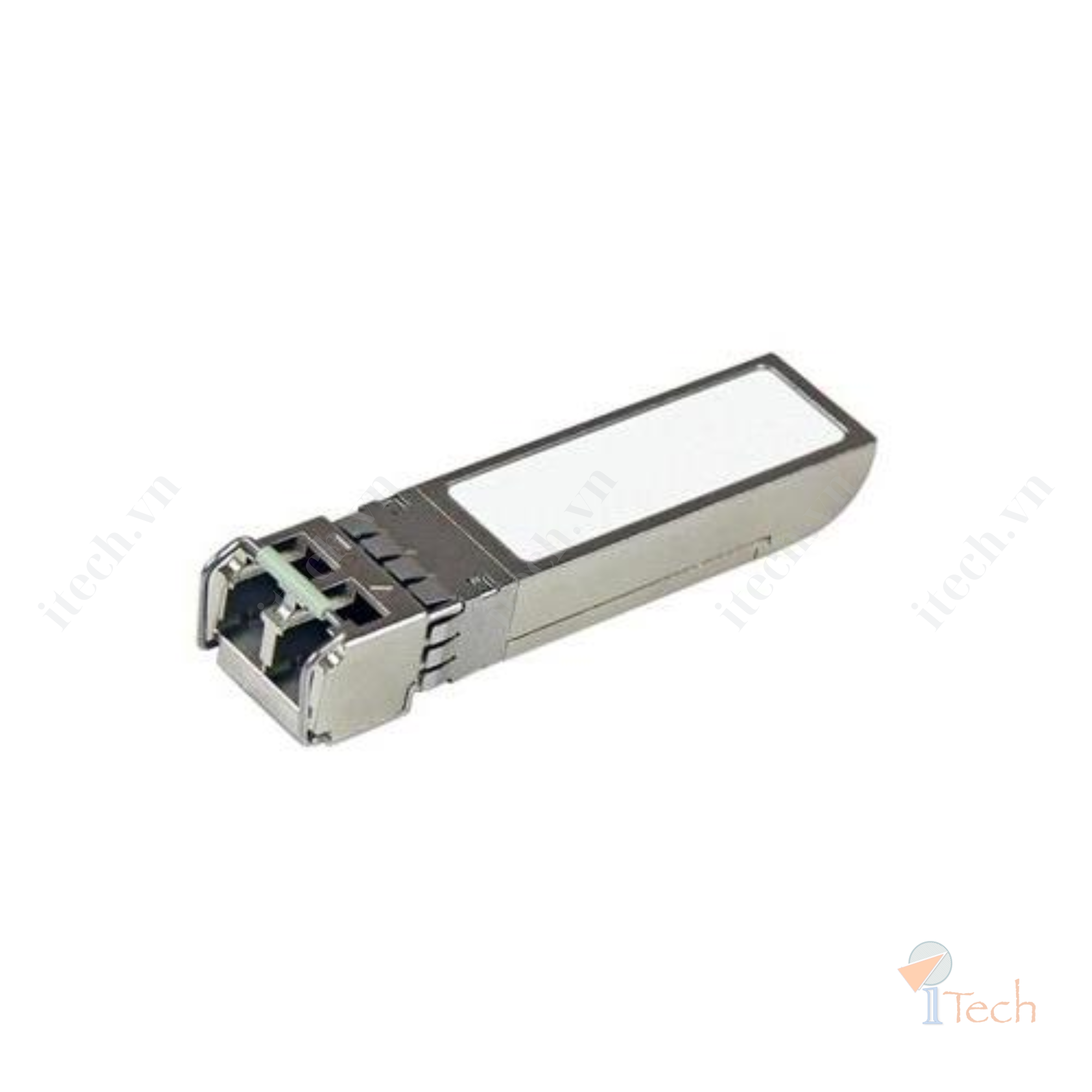

The Alcatel Lucent 1AB429380001 is a high-performance SFP+ fiber optic transceiver module designed for use in 4G/5G mobile network systems that implement the CPRI (Common Public Radio Interface) protocol.
Specification | Value |
---|---|
Part Number | 1AB429380001 |
Module Type | SFP+ (Small Form-factor Pluggable Plus) |
Supported Protocol | CPRI (Common Public Radio Interface) version 2-6 |
Data Rate | 6.144 Gbps |
Reach | Up to 15 km |
Optical Type | Single-mode |
Optical Connector | LC (Lucent Connector) |
Operating Temperature | -40°C to +85°C |
Power Consumption | Typical 1.5W, Max 2W |
Lifetime | > 20 years |
Standards Compliance | SFP+ MSA |
Features | DDMI (Digital Diagnostic Monitoring Interface) support, Shock and vibration resistant, IP-20 protection, High reliability (MTBF > 1,000,000 hours) |
Applications | 4G/5G, CPRI, Fronthaul |
