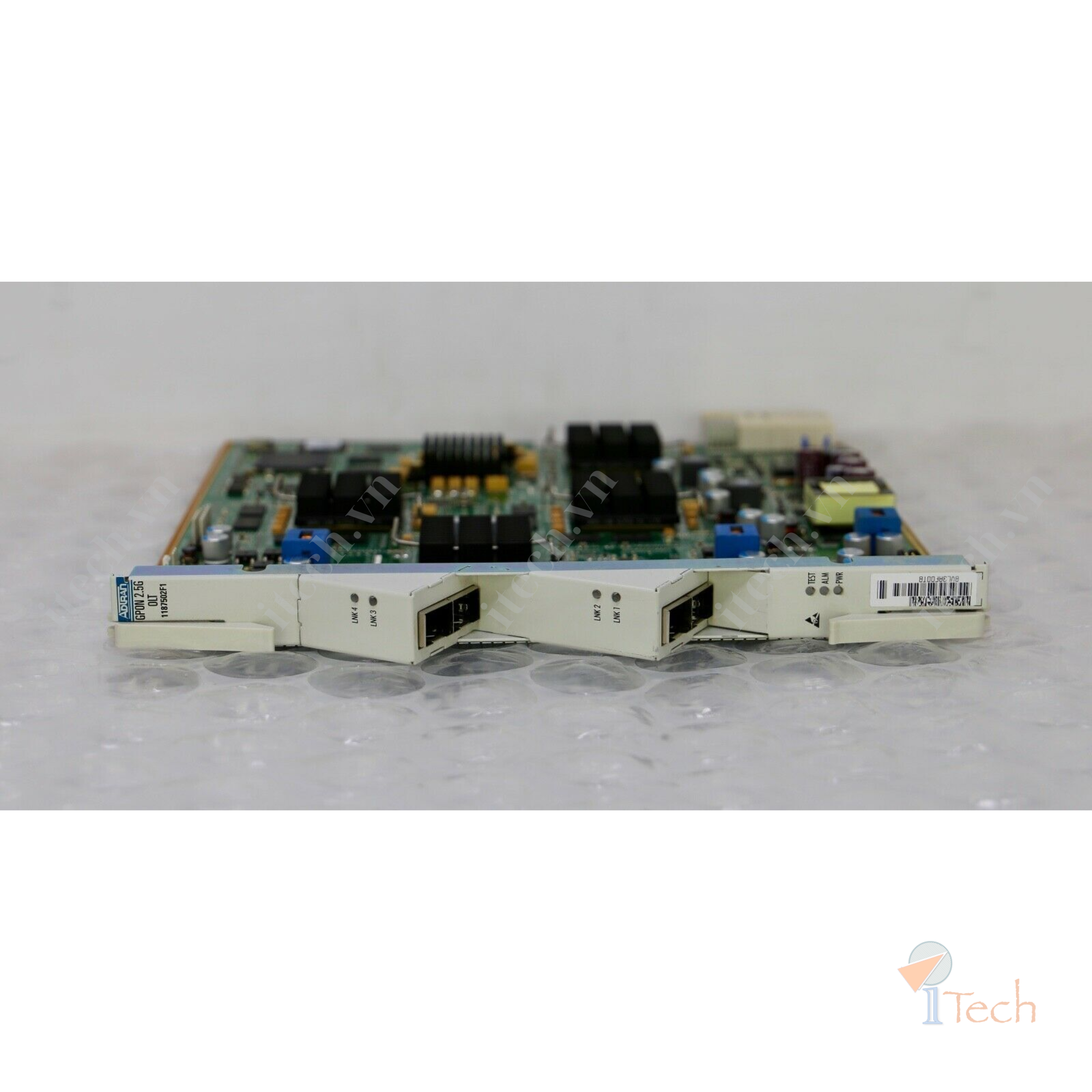

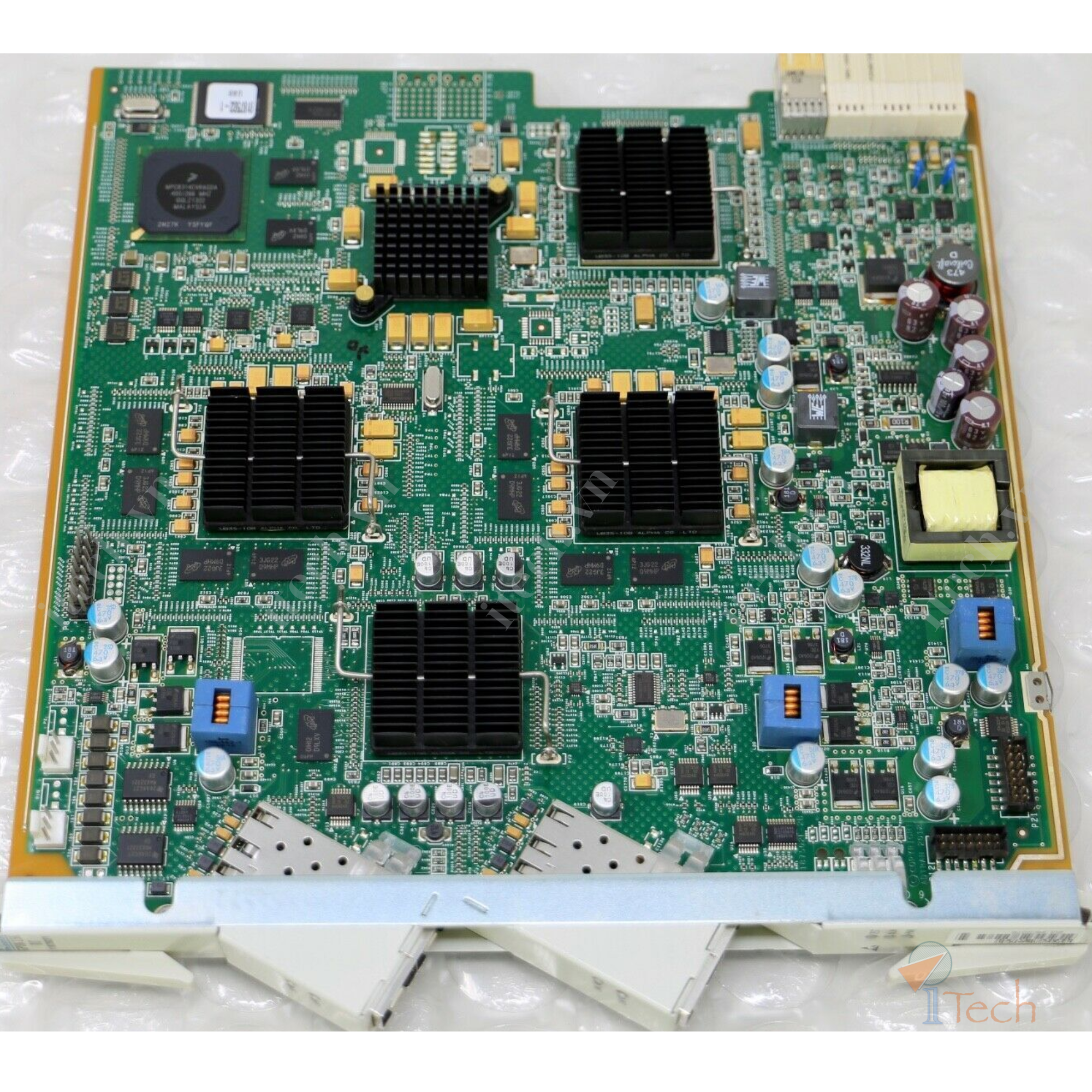

The Adtran 1187502F1 Total Access 5000 Quad GPON OLT Access Module is a powerful and versatile GPON access solution. It provides 4 GPON uplink ports capable of supporting data rates up to 2.5 Gbps downstream and 1.25 Gbps upstream, with the ability to serve up to 128 ONTs (Optical Network Terminals) per port.
Fiber Interfaces | 4 x GPON uplink ports (LC connectors) |
Supported Standards | ITU-T G.984 GPON |
GPON Port Characteristics | - Data rates up to 2.5 Gbps downstream, 1.25 Gbps upstream<br>- Supports up to 128 ONTs (Optical Network Terminals) per port |
GPON Optics | Class B+ optics (nominal range of 20 km) |
Management | - CLI, SNMP, NETCONF<br>- Integrated with ADTRAN Total Access EMS |
Power Consumption | 90W maximum |
Physical Dimensions (H x W x D) | 1.75 x 17.3 x 12.25 inches (4.45 x 44 x 31.1 cm) |
Weight | 9 lbs (4.1 kg) |
Mounting | 19-inch rack mount |
