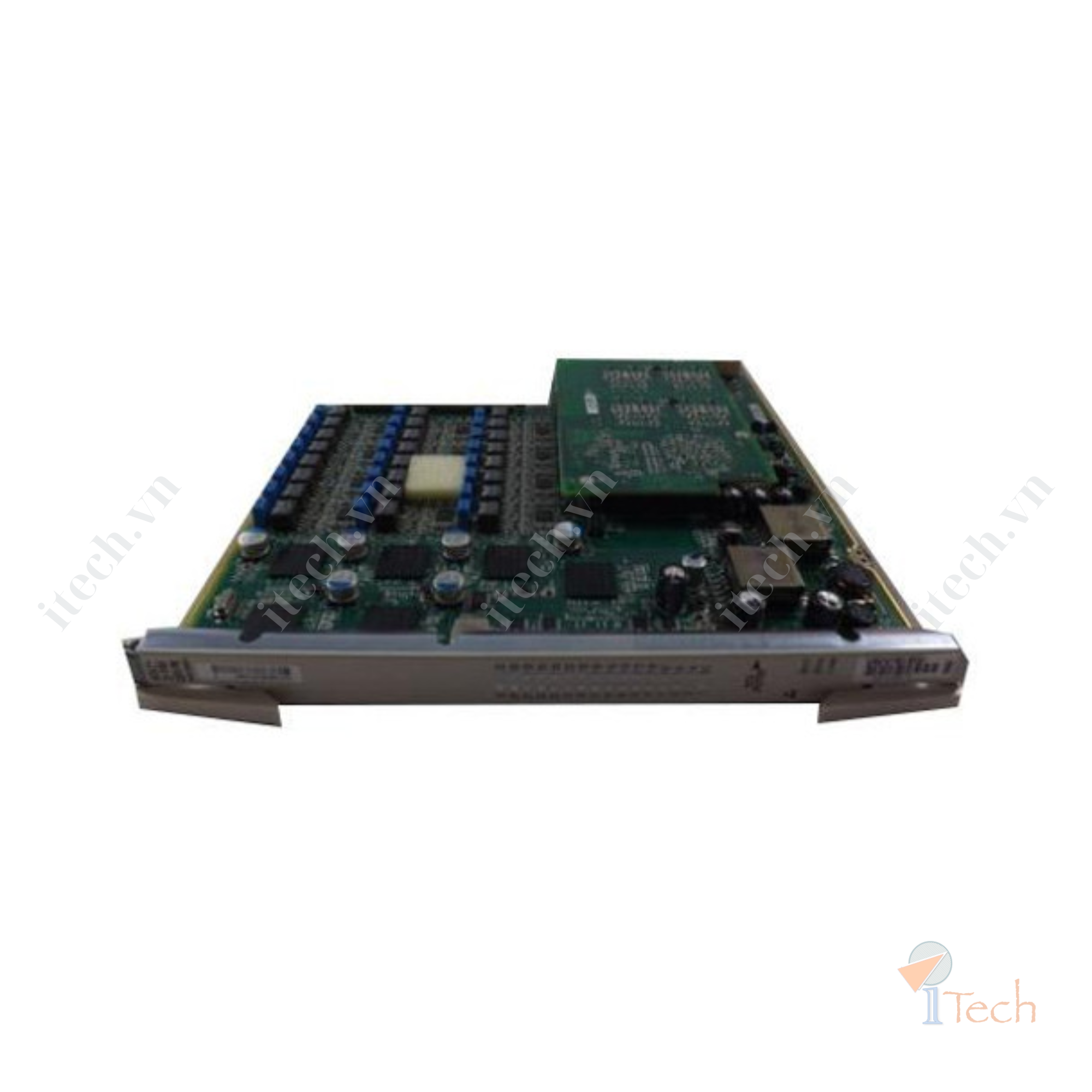

This ADSL2+ access module provides high-density ADSL2+ connectivity for the ADTRAN Total Access 5000 platform, enabling the delivery of broadband services over existing copper telephone infrastructure.
| Ports | 32 x ADSL2+ ports (RJ-11 connectors) |
| Supported DSL Technology | ADSL2+ |
| Supported Protocols | ITU-T G.992.1 (ADSL), ITU-T G.992.3 (ADSL2), ITU-T G.992.5 (ADSL2+) |
| DSL Port Characteristics | - Data rates up to 24 Mbps downstream, 3 Mbps upstream<br>- Loop length support up to 18,000 ft (5,486 m) |
| Management | - CLI, SNMP, NETCONF<br>- Integrated with ADTRAN Total Access EMS |
| Power Consumption | 55W maximum |
| Physical Dimensions (H x W x D) | 1.75 x 17.3 x 12.25 inches (4.45 x 44 x 31.1 cm) |
| Weight | 9 lbs (4.1 kg) |
| Mounting | 19-inch rack mount |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
