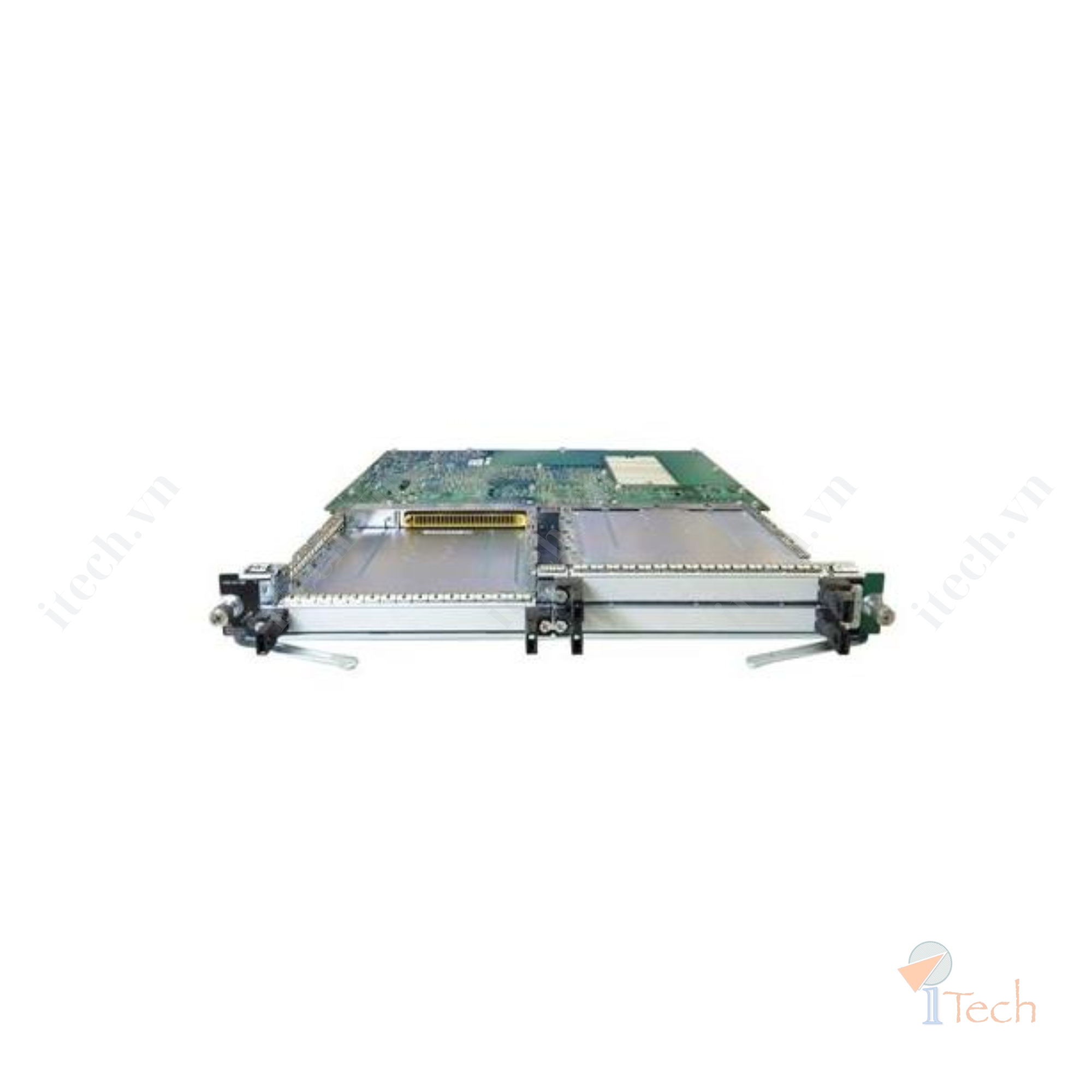

Cisco 15600-ASAP-1PIO-RF ASAP-1PIO 10GBase-X 10 Gigabit Ethernet I/O Module with 1x XFP Expansion Slots

Thương hiệu: CISCO
Tình trạng: Còn hàng
Liên hệ

Cisco ASAP-1PIO là mô-đun giao diện vào/ra (I/O) Ethernet 10 Gigabit dành cho nền tảng Cisco 15600 Series Advanced Services Aggregation Platform (ASAP). Mô-đun này cung cấp 1 cổng Ethernet 10GBase-X cùng 1 khe mở rộng XFP, cho phép tích hợp các bộ chuyển đổi quang học XFP để hỗ trợ kết nối mạng 10GbE.

Function10 Gigabit Ethernet I/O module with 1 XFP expansion slot for the Cisco 15600 Series Advanced Services Aggregation Platform (ASAP)
Interface1 x 10GBase-X Ethernet port
Expansion Slots1 x XFP expansion slot
Supported OpticsSingle-mode and multi-mode XFP optics
Forwarding Rate14.88 Mpps
Switching Capacity20 Gbps
Dimensions (W x D x H)1.2 in x 13.1 in x 1 in (30.48 mm x 332.74 mm x 25.4 mm)
Weight2.2 lb (1 kg)
Power Consumption40 W
Operating Temperature32°F to 104°F (0°C to 40°C)
Storage Temperature-40°F to 158°F (-40°C to 70°C)
Humidity5% to 95% non-condensing
ComplianceUL/IEC 60950-1, FCC Part 15 Class A, CE
